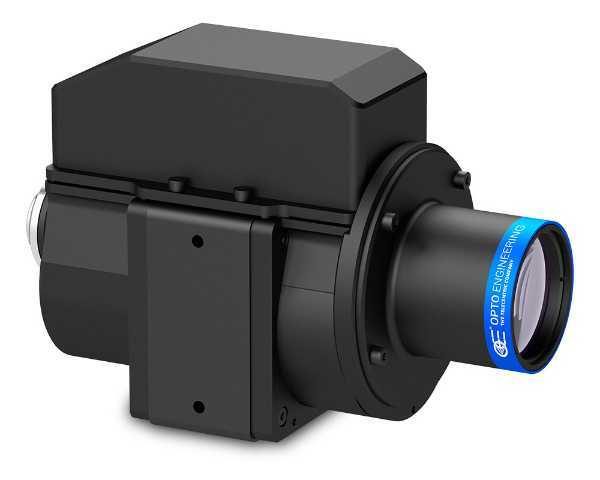

TCZR036S

Specification	Value
Magnification	0.250 0.500 1.000 2.000 (x)
Image circle diameter	11.0 (mm)
Max sensor size	2/3″
1/3″	19.20 x 14.40 9.60 x 7.20 4.80 x 3.60 2.40 x 1.80 (mm x mm)
1/2.5″	22.80 x 17.12 11.40 x 8.56 5.70 x 4.28 2.85 x 2.14 (mm x mm)
1/2″	25.60 x 19.20 12.80 x 9.60 6.40 x 4.80 3.20 x 2.40 (mm x mm)
1/1.8″	28.52 x 21.32 14.26 x 10.66 7.13 x 5.33 3.57 x 2.67 (mm x mm)
2/3″	34.00 x 28.36 17.00 x 14.18 8.50 x 7.09 4.25 x 3.55 (mm x mm)
Working distance	74.0 (mm)
Working f/N	16
Telecentricity typical (max)	< 0.05 (0.10) < 0.05 (0.10) < 0.05 (0.10) < 0.05 (0.10) (deg)
Distortion typical (max)	< 0.05 (0.08) < 0.04 (0.08) < 0.04 (0.08) < 0.08 (0.10) (%)
Depth of field	13.20 3.30 0.80 0.20 (mm)
Resolution	41 20 10 5 (μm)
Reference point repeatability	< 6 < 5 < 2 < 4 (μm)
Max image displacementbetween magnification changes	350 (μm)
Connector	DB15HD male
Number of motors	1
Type	Bipolar stepper
RMS winding current	600 (mA)
Winding voltage	24 (V)
Steps per revolution	200
Min. time for magnification change	1.5 (s)
Max time for magnification change	2 (s)
Number of encoders	1
Supply voltage	24 (V)
Maximum supply current	30 (mA)
Type	Magnetic rotary, incremental with reference
Output signals	A, B, Z (index)
Interfaces	RS422
Number of magnetic poles	120
Poles pitch	2 (mm)
Interpolation	500
Pulses per revolution	60000
Motor to encoder ratio	2.56
Mount	C
Phase adjustment	Yes
Length	211.5 (mm)
Height	142.0 (mm)
Width	103.0 (mm)
Front diameter	58.0 (mm)
Mass	2359 (g)
Operating temperature	0-40 (°C )
Storage temperature	0-50 (°C )
Humidity	10-85 non condensing (%)
IP rating	IP20
Installation	Indoor use only

Categorie: Telecentric Etichetă: Opto Brand: Opto

Descriere

Working distance: distance between the front end of the mechanics and the object. Set this distance within ±3% of the nominal value for maximum resolution and minimum distortion.
Working f-number (wf/N): the real f-number of a lens in operating conditions.
Maximum angle between chief rays and optical axis on the object side. Typical (average production) values and maximum (guaranteed) values are listed.
Percent deviation of the real image compared to an ideal, undistorted image. Typical (average production) values and maximum (guaranteed) values are listed.
At the limits of the depth of field, the image can still be used for measurements. For a very sharp image, however, only half of the depth of field should be considered. Pixel size used for calculation is 3.45 μm.
Object side, calculated with the Rayleigh criterion with λ= 520 nm
Image side, at 1 Ď standard deviation.
Image side.
One magnification step.
Two magnification steps.
1 encoder pulse = 2.56 motor µsteps (with a 256 microstepping control).
Indicates the availability of an integrated camera phase adjustment feature

Informații suplimentare

Lens mount	C
Image circle diameter	11.0 (mm)
Working distance	74.0 (mm)
Working f/N	16
Telecentricity typical (max)	< 0.05 (0.10) < 0.05 (0.10) < 0.05 (0.10) < 0.05 (0.10) (deg)
Distortion typical (max)	< 0.05 (0.08) < 0.04 (0.08) < 0.04 (0.08) < 0.08 (0.10) (%)
Depth of field	13.20 3.30 0.80 0.20 (mm)
Resolution	41 20 10 5 (μm)
Phase adjustment	Yes
Length	211.5 (mm)
Rms winding current	600 (mA)
Front diameter	58.0 (mm)
Ref point repeatability	< 6 < 5 < 2 < 4 (μm)
Max image shift (zoom)	350 (μm)
Connector	DB15HD male
Number of motors	1
Product type	Magnetic rotary, incremental with reference
Installation	Indoor use only
Accessory developer	Opto
Zoom ratio	0.250 0.500 1.000 2.000 (x)
Mass	2359 (g)
Steps per revolution	200
Poles pitch	2 (mm)
Max zoom switch time	2 (s)
Number of encoders	1
Supply voltage	24 (V)
Maximum supply current	30 (mA)
Output signals	A, B, Z (index)
Interfaces	RS422
Number of magnetic poles	120
Min zoom switch time	1.5 (s)
Pulses per revolution	60000
Winding voltage	24 (V)
Motor to encoder ratio	2.56
Height	142.0 (mm)
Width	103.0 (mm)
Operating temperature	0-40 (°C )
Storage temperature	0-50 (°C )
Humidity	10-85 non condensing (%)
Ip rating	IP20
Interpolation	500
Optmag	0.250 0.500 1.000 2.000 (x)
