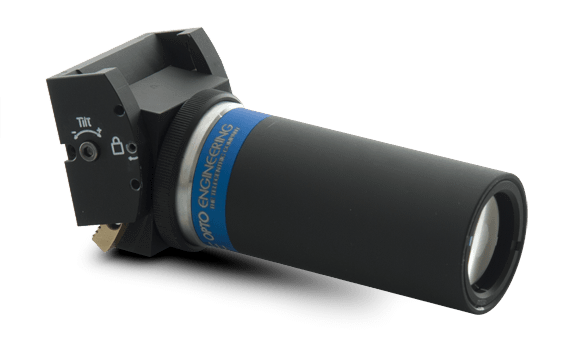

TCSM016

TCSM016

Specification Value
Object tilt 0
10
20
30 (deg)
Mount tilt 0
5.3
10.9
17.0 (deg)
Horizontal magnification 0.528
0.528
0.528
0.528 (x)
Vertical magnification 0.528
0.522
0.505
0.478 (x)
Max sensor size 2/3″
1/3″ 9.09 x 6.82
9.09 x 6.90
9.09 x 7.13
9.09 x 7.53 (mm x mm)
1/2.5″ 10.80 x 8.11
10.80 x 8.20
10.80 x 8.48
10.80 x 8.95 (mm x mm)
1/2″ 12.12 x 9.09
12.12 x 9.20
12.12 x 9.50
12.12 x 10.04 (mm x mm)
1/1.8″ 13.50 x 10.09
13.50 x 10.21
13.50 x 10.55
13.50 x 11.15 (mm x mm)
2/3″ 16.10 x 13.43
16.10 x 13.58
16.10 x 14.04
16.10 x 14.83 (mm x mm)
1/3″ 6.82 x 9.09
6.82 x 9.20
6.82 x 9.50
6.82 x 10.04 (mm x mm)
1/2.5″ 8.11 x 10.80
8.11 x 10.92
8.11 x 11.29
8.11 x 11.92 (mm x mm)
1/2″ 9.09 x 12.12
9.09 x 12.26
9.09 x 12.67
9.09 x 13.39 (mm x mm)
1/1.8″ 9.09 x 8.11
9.20 x 8.11
9.50 x 8.11
10.04 x 8.11 (mm x mm)
2/3″ 13.43 x 16.10
13.43 x 16.28
13.43 x 16.83
13.43 x 17.78 (mm x mm)
Working distance 43.1 (mm)
Working f/N 8
Telecentricity typical (max) < 0.06 (0.10) (deg)
Distortion typical (max) < 0.04 (0.07) (%)
Mount C
Max mount tilt 20 (deg)
Phase adjustment Yes
Length 112.6 (mm)
Front diameter 37.7 (mm)
Mass 405 (g)
Adaugă la oferte
Categorie: Etichetă: Brand:

Descriere

  1. Working distance: distance between the front end of the mechanics and the object. Set this distance within ±3% of the nominal value for maximum resolution and minimum distortion.
  2. Working f-number (wf/N): the real f-number of a lens in operating conditions.
  3. Maximum angle between chief rays and optical axis on the object side. Typical (average production) values and maximum (guaranteed) values are listed.
  4. Percent deviation of the real image compared to an ideal, undistorted image. Typical (average production) values and maximum (guaranteed) values are listed.
  5. Measured from the front end of the mechanics to the camera flange.

Informații suplimentare

Lens mount

C
Length

112.6 (mm)
Horizontal magnification

0.528 0.528 0.528 0.528 (x)
Accessory developer

Opto
Max mount tilt

20 (deg)
Mount tilt

0 5.3 10.9 17.0 (deg)
Object tilt

0 10 20 30 (deg)
Front diameter

37.7 (mm)
Mass

405 (g)
Phase adjustment

Yes
Distortion typical (max)

< 0.04 (0.07) (%)
Telecentricity typical (max)

< 0.06 (0.10) (deg)
Working f/N

8
Working distance

43.1 (mm)
Vertical magnification

0.528 0.522 0.505 0.478 (x)
Sensor size
Horizontal Zoom ratio

0.528 0.528 0.528 0.528 (x)
Vertical Zoom ratio

0.528 0.522 0.505 0.478 (x)
