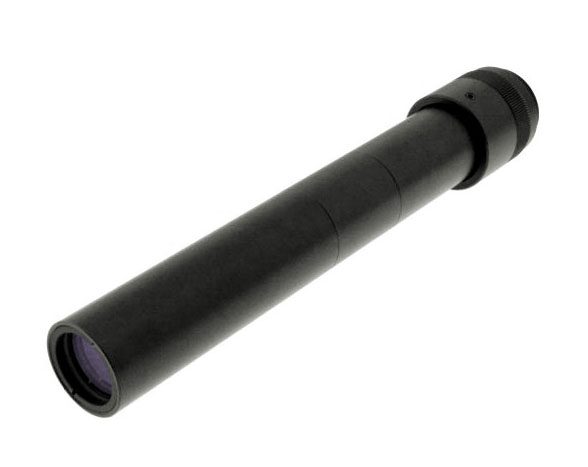

RT-TV-3M-150

RT-TV-3M-150

Specification Value
Magnification 3.000 (x)
Image circle diameter 8.0 (mm)
Max sensor size 1/2″
1/3″ 1.60 x 1.20 (mm x mm)
1/2.5″ 1.90 x 1.43 (mm x mm)
1/2″ 2.13 x 1.60 (mm x mm)
1/1.8″ – (mm x mm)
Working distance 156.0 (mm)
Working f/N 37.5
Distortion < 1.13 (%)
Depth of field 0.30 (mm)
Resolution 8.4 (μm)
Mount C
Phase adjustment Yes
Length 168.4 (mm)
Front diameter 24.0 (mm)
Mass 136 (g)
Adaugă la oferte
Categorie: Etichetă: Brand:

Descriere

  1. Working distance: distance between the front end of the mechanics and the object. Set this distance within ±3% of the nominal value for maximum resolution and minimum distortion.
  2. Working f-number (wf/N): the real f-number of a lens in operating conditions.
  3. Measured from the front end of the mechanics to the camera flange.

Informații suplimentare

Lens mount

C
Length

168.4 (mm)
Operation power source
Color
Accessory developer

Opto
Distortion

< 1.13 (%)
Front diameter

24.0 (mm)
Image circle diameter

8.0 (mm)
Resolution

8.4 (μm)
Mass

136 (g)
Phase adjustment

Yes
Depth of field

0.30 (mm)
Working f/N

37.5
Working distance

156.0 (mm)
Zoom ratio

3.000 (x)
Optmag

3.000 (x)
Sensor size
