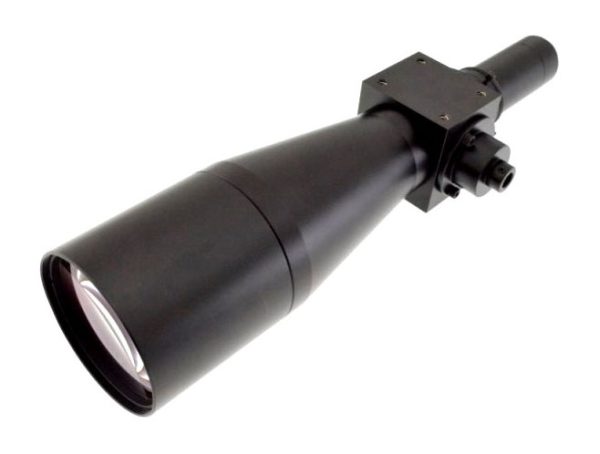

RT-TCL0200-F

RT-TCL0200-F

Specification Value
Magnification 0.200 (x)
Image circle diameter 11.0 (mm)
Max sensor size 2/3″
1/3″ 24.00 x 18.00 (mm x mm)
1/2.5″ 28.50 x 21.40 (mm x mm)
1/2″ 32.00 x 24.00 (mm x mm)
1/1.8″ 35.65 x 26.65 (mm x mm)
2/3″ 42.50 x 35.45 (mm x mm)
Working distance 167.0 (mm)
Working f/N 8-40
Distortion < 0.03 (%)
Depth of field 7.10 (mm)
Resolution 26.8 (μm)
Mount C
Phase adjustment No
Length 297.2 (mm)
Front diameter 68.0 (mm)
Mass 793 (g)
Adaugă la oferte
Categorie: Etichetă: Brand:

Descriere

  1. Working distance: distance between the front end of the mechanics and the object. Set this distance within ±3% of the nominal value for maximum resolution and minimum distortion.
  2. Working f-number (wf/N): the real f-number of a lens in operating conditions.
  3. Measured from the front end of the mechanics to the camera flange.

Informații suplimentare

Lens mount

C
Length

297.2 (mm)
Operation power source
Color
Accessory developer

Opto
Distortion

< 0.03 (%)
Front diameter

68.0 (mm)
Image circle diameter

11.0 (mm)
Resolution

26.8 (μm)
Mass

793 (g)
Phase adjustment

No
Depth of field

7.10 (mm)
Working f/N

8-40
Working distance

167.0 (mm)
Zoom ratio

0.200 (x)
Optmag

0.200 (x)
Sensor size
