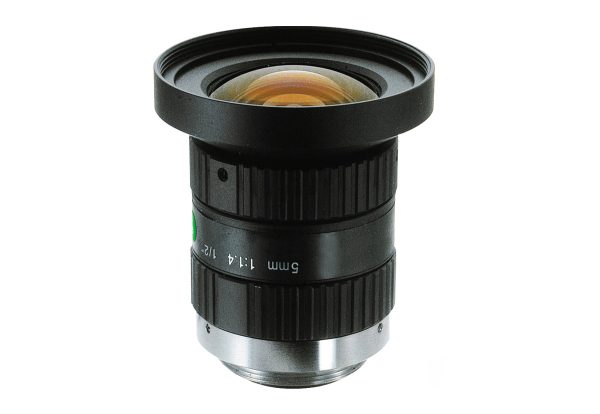

RT-H0514-MP2

RT-H0514-MP2

Specification Value
Focal length 5 (mm)
Magnification 0.043 (x)
Image circle diameter 8.0 (mm)
Max sensor size 1/2″
1/3″ 62.3 (deg)
1/2″ 76.7 (deg)
2/3″ – (deg)
1/3″ 111.63 x 83.72
1/2″ 148.84 x 111.63
2/3″ –
Working distance range 0.1 – inf (m)
f/N 1.4 – 16
Back focal length 10.8 (mm)
Distortion on 1/3″ 2.26 (%)
Distortion on 1/2″ 0.48 (%)
Distortion on 2/3″ – (%)
Iris control Manual
Focus control Manual
Mount C
Filter thread M43 x 0.75
Outer diameter 44.5 (mm)
Length 45.5 (mm)
Mass 102 (g)
Set screw thread M2 x 2.7
Adaugă la oferte
Categorie: Etichetă: Brand:

Descriere

  1. Calculated at minimum object distance.
  2. Working distance: distance between the front end of the mechanics and the object.
  3. Value calculated at the corner point of the sensor diagonal. For distortion graphs see datasheet
  4. Measured from the front end of the mechanics to the camera flange at infinity focus.

Informații suplimentare

Lens mount

C
Zoom ratio

0.043 (x)
Optmag

0.043 (x)
Operation power source
Accessory developer

Opto
Set screw thread

M2 x 2.7
Mass

102 (g)
Image circle diameter

8.0 (mm)
Length

45.5 (mm)
Focal length

5 (mm)
Working distance range

0.1 – inf (m)
F/n

1.4 – 16
Back focal length

10.8 (mm)
Distortion on 1 3

2.26 (%)
Distortion on 1 2

0.48 (%)
Distortion on 2 3

– (%)
Iris control

Manual
Focus control

Manual
Filter thread

M43 x 0.75
Outer diameter

44.5 (mm)
Color
Focal length (mm)

5 (mm)
Sensor size
