R5013MG-00C-NGG01E

Resolution	1280 x 1024
Max. Frame rate	60 fps
Sensor Type	1/2.7″CMOS
Shutter Mode	Global
Pixel Size	4.0 ?m x 4.0 ?m
Mono/Color	Mono
Lens Mount	C-MOUNT
Trigger Mode	Software trigger/Hardware trigger/Free run mode
Software	EasyID
Certifications	CE, UKCA, KC
Function	1D:Code 39, Code 93, Code128, CodaBar, EAN8, EAN13, UPCA, UPCE, ITF25, 2of5?Industrial2of5?, standard25, GS1-128 ect? 2D:QR/Data Matrix/MQR/GS1 DM/GS1QR ect?? Code quality evaluation:ISO/IEC 29158(AIM-DPM), ISO/IEC 15415, ISO/IEC 15416?
Max. Read Speed	90 codes/s
Connector	2 industrial connectors: 1 Ethernet, 1 GPIO
Network Port	1 GigE
GPIO Interface	12-pin IO interface: 2 Opto-isolated inputs, 3 opto-isolated outputs
Communication Mode	1 RS232, 1 GigE
Communication protocol	SDK, TCP Client, TCP Server, FTP, RS232, Profinet, Modbus, EtherNet/IP, MC(SLMP), FINS/UDP, FINS/TCP
LED Indicator	5 status indicators: system, network, trigger and 2 user configurable indicators
Power Supply	24VDC
Power Consumption	?4.0W (Without light source)
Product Dimensions	68mmx55mmx28mm (Excluding lens mount and connector)
Net Weight	?200 g
Protection	IP67(With lens cover installed correctly)
Casing Material	Aluminium alloy
Operating Temperature	-20??+50?
Operating Humidity	20%?95%, No condensation(Excluding lens mount and connector)
Storage Temperature	-30??+80?

Descriere

Built-in AI deep-learning algorithms and multi-parameters polling to ensure effects of complex applications
Global shutter, CMOS series products
Support multiple trigger modes such as software trigger/external trigger/free run
Industrial GigE interface
Rich IO interfaces, RS232, Opto-isolated input and output
Support C-mount lens
Industrial grade M12 connector, IP65 protection level
Support multiple symbologies such as 1D: CODE128, EAN and more, 2D: DM, QR and more.

Connector	2 industrial connectors: 1 Ethernet, 1 GPIO
Gpio interface	12-pin IO interface: 2 Opto-isolated inputs, 3 opto-isolated outputs
Lens mount	C-mount
Pixel size	4.0 um x 4.0 um
Power consumption	≤4.0W (Without light source)
Power supply	24VDC
Resolution	1280 x 1024
Sensor type	1/2.7"CMOS
Storage temperature	-30℃~+80℃
Trigger mode	Software Trigger/Hardware Trigger/Free Run Mode
Mono-color	Mono
Max. frame rate	60 fps
Shutter mode	Global
Software	EasyID
Certifications	CE, UKCA, KC
Function
Max. read speed	90 codes/s
Network port	1 GigE
Communication mode	1 RS232, 1 GigE
Communication protocol	SDK, TCP Client, TCP Server, FTP, RS232, Profinet, Modbus, EtherNet/IP, MC(SLMP), FINS/UDP, FINS/TCP

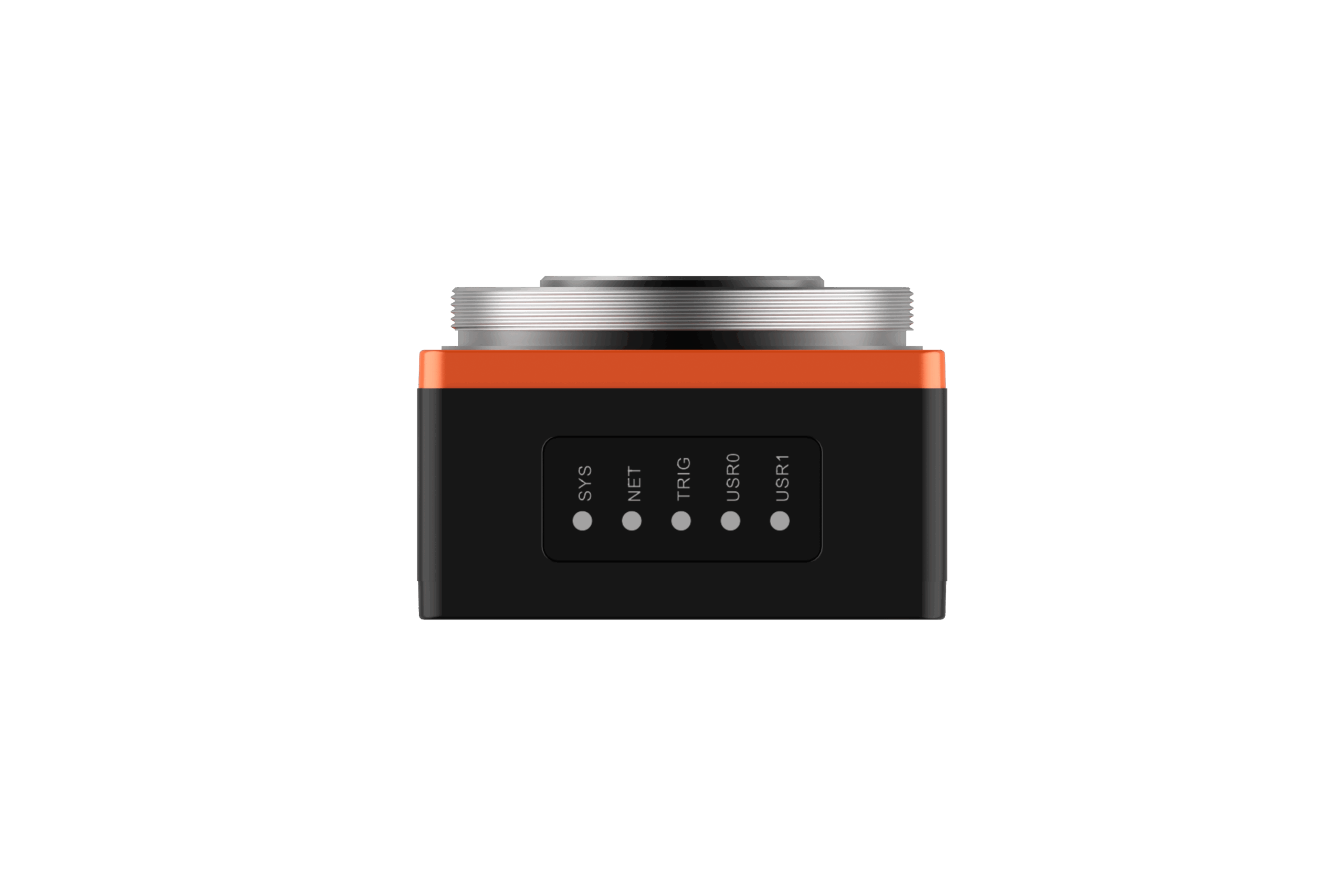

Led indicator	5 status indicators: system, network, trigger and 2 user configurable indicators
Protection	IP67(With lens cover installed correctly)
Casing material	Aluminium alloy
Operating humidity	20%~95%, No condensation(Excluding lens mount and connector)
