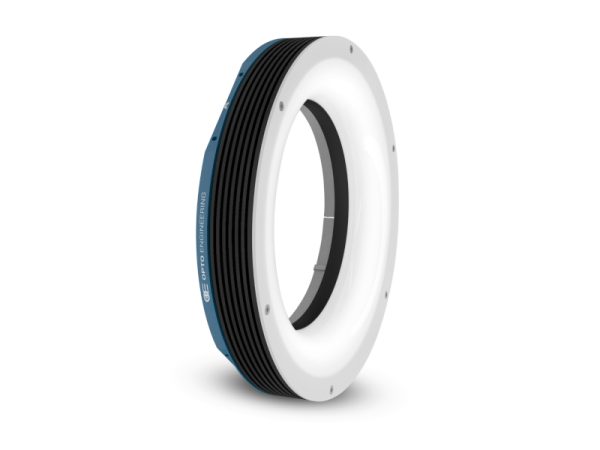

LTRNHP245W25

LTRNHP245W25

Specification Value
Illumination area outer diameter 215.0 (mm)
Illumination area inner diameter 160.0 (mm)
Emission angle 25 (deg)
Optimal working distance 20-80 (mm)
Number of LEDs 98
Light color, peak wavelength white, 6200 K
Spectral FWHM – (nm)
Illuminance n.a. (klux)
Diffuser yes
Supply voltage 24
Current 2710 (mA)
Power consumption 65 (W)
Max pulse current 20.0 (A)
Peak power consumption 434 (W)
Max pulse duration 1 (ms)
Max duty-cycle 2 (%)
Estimated MTBF > 20000 (hours)
Connector WEIPU SP2110/P5
Cables CBLT010 included
Outer diameter 245.0 (mm)
Inner diameter 157.0 (mm)
Height 50.0 (mm)
Mass 1600 (g)
Clamping system 8x M4 threaded holes
Operating temperature 0-40 (°C)
Storage temperature -20-+60 (°C)
Operating relative humidity 20-85, non condensing (%)
Installation Indoor use only
Risk group according to CEI EN 62471:2010 Risk group 1
Adaugă la oferte
Categorie: Etichetă: Brand:

Descriere

  1. Measured at minimum working distance
  2. ± 2%.
  3. With constant driving voltage.
  4. At 25°C. At max pulse width (1 ms), max pulse frequency = 15 Hz.

Informații suplimentare

Mass

1600 (g)
Number of leds

98
Light color, peak wavelength

white, 6200 K
Accessory developer

Opto
Inner diameter

157.0 (mm)
Supply voltage

24
Height

50.0 (mm)
Operating temperature

0-40 (°C)
Storage temperature

-20-+60 (°C)
Installation

Indoor use only
Outer diameter

245.0 (mm)
Color

white, 6200 K
Operation power source

2710 (mA)
Operating relative humidity

20-85, non condensing (%)
Risk group (cei 62471)

Risk group 1
Connector

WEIPU SP2110/P5
Diffuser

yes
Illuminance

n.a. (klux)
Current

2710 (mA)
Power consumption

65 (W)
Peak power consumption

434 (W)
Max duty cycle

2 (%)
Max pulse duration

1 (ms)
Cables

CBLT010 included
Clamping system

8x M4 threaded holes
Estimated mtbf

> 20000 (hours)
Illumination area (outer)

215.0 (mm)
Illumination area (inner)

160.0 (mm)
Optimal working distance

20-80 (mm)
Emission angle

25 (deg)
Max pulse current

20.0 (A)
