Descriere
- Measured at minimum working distance
- ± 2%.
- With constant driving voltage.
- At 25°C. At max pulse width (1 ms), max pulse frequency = 15 Hz.

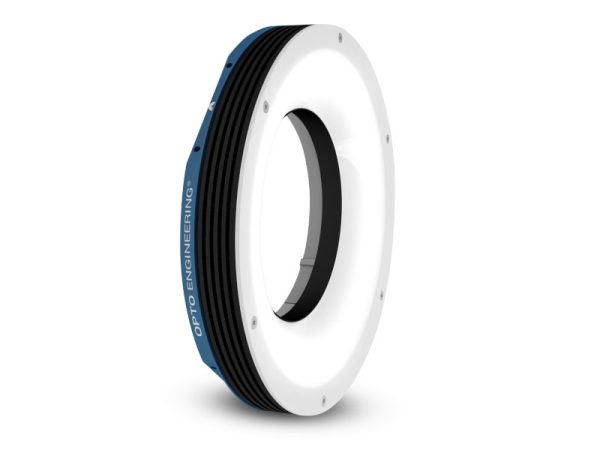

LTRNHP210R20
| Specification | Value |
|---|---|
| Illumination area outer diameter | 182.0 (mm) |
| Illumination area inner diameter | 117.5 (mm) |
| Emission angle | 20 (deg) |
| Optimal working distance | 50-100 (mm) |
| Number of LEDs | 81 |
| Light color, peak wavelength | red, 625 nm |
| Spectral FWHM | 20 (nm) |
| Illuminance | n.a. (klux) |
| Diffuser | yes |
| Supply voltage | 24 |
| Current | 2090 (mA) |
| Power consumption | 50 (W) |
| Max pulse current | 9.0 (A) |
| Peak power consumption | 217 (W) |
| Max pulse duration | 1 (ms) |
| Max duty-cycle | 2 (%) |
| Estimated MTBF | > 20000 (hours) |
| Connector | WEIPU SP2110/P5 |
| Cables | CBLT010 included |
| Outer diameter | 210.0 (mm) |
| Inner diameter | 116.5 (mm) |
| Height | 42.0 (mm) |
| Mass | 1200 (g) |
| Clamping system | 8x M4 threaded holes |
| Operating temperature | 0-40 (°C) |
| Storage temperature | -20-+60 (°C) |
| Operating relative humidity | 20-85, non condensing (%) |
| Installation | Indoor use only |
| Risk group according to CEI EN 62471:2010 | Exempt |
