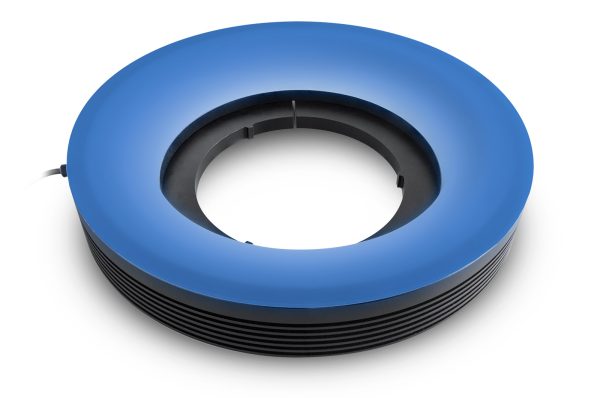

LTRN245B45

LTRN245B45

Specification Value
Illumination area outer diameter 225.0 (mm)
Illumination area inner diameter 160.0 (mm)
Emission angle 45 (deg)
Optimal working distance 20-80 (mm)
Number of LED rows 1
Light color, peak wavelength blue, 470 nm
Illuminance at minimum working distance 7950 (lux)
Illuminance at maximum working distance 6200 (lux)
Supply voltage 24 (V)
Current 650 (mA)
Power consumption 15.6 (W)
Estimated MTBF > 20000 (hours)
Max pulse voltage 24-48 (36 recomended) (V)
Max pulse current 1950 (mA)
Max duty-cycle 10 (%)
Max pulse duration 10 (ms)
Connector Flying leads
Cable length 1000 (mm)
Outer diameter 245.0 (mm)
Inner diameter 117.0 (mm)
Height 48.0 (mm)
Mass 1130 (g)
Operating temperature 0-45 (°C)
Operating relative humidity 20-85, non condensing (%)
Risk group according to CEI EN 62471:2010 Exempt
Adaugă la oferte
Categorie: Etichetă: Brand:

Descriere

  1. ± 15%.
  2. Tolerance ± 2%.
  3. At 25°C.
  4. Constant voltage power supply.
  5. Constant current power supply.

Informații suplimentare

Cable length

1000 (mm)
Max duty cycle

10 (%)
Light color, peak wavelength

blue, 470 nm
Accessory developer

Opto
Lux at max wd

6200 (lux)
Connector

Flying leads
Supply voltage

24 (V)
Height

48.0 (mm)
Operating temperature

0-45 (°C)
Outer diameter

245.0 (mm)
Color

blue, 470 nm
Operating relative humidity

20-85, non condensing (%)
Risk group (cei 62471)

Exempt
Current

650 (mA)
Mass

1130 (g)
Power consumption

15.6 (W)
Max pulse duration

10 (ms)
Estimated mtbf

> 20000 (hours)
Illumination area (outer)

225.0 (mm)
Illumination area (inner)

160.0 (mm)
Optimal working distance

20-80 (mm)
Number of led rows

1
Emission angle

45 (deg)
Max pulse voltage

24-48 (36 recomended) (V)
Inner diameter

117.0 (mm)
Lux at min wd

7950 (lux)
Max pulse current

1950 (mA)
Operation power source

650 (mA)
