Descriere
- ± 15%.
- Tolerance ± 2%.
- At 25°C.
- Constant voltage power supply.
- Constant current power supply.

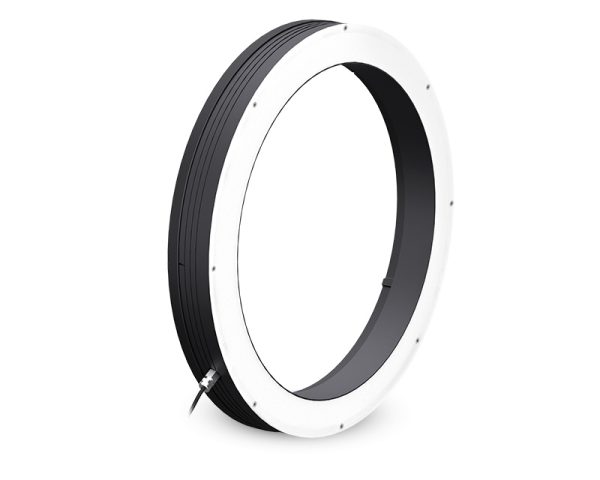

LTRN192NW
| Specification | Value |
|---|---|
| Illumination area outer diameter | 306.2 (mm) |
| Illumination area inner diameter | 264.0 (mm) |
| Emission angle | 0 (deg) |
| Optimal working distance | 110-150 (mm) |
| Number of LED rows | 1 |
| Light color, peak wavelength | white, 6300 K |
| Illuminance at minimum working distance | 3080 (lux) |
| Illuminance at maximum working distance | 2860 (lux) |
| Supply voltage | 24 (V) |
| Current | 1200 (mA) |
| Power consumption | 28.8 (W) |
| Estimated MTBF | > 20000 (hours) |
| Max pulse voltage | 24-48 (36 recomended) (V) |
| Max pulse current | 3600 (mA) |
| Max duty-cycle | 10 (%) |
| Max pulse duration | 10 (ms) |
| Connector | Flying leads |
| Cable length | 1000 (mm) |
| Outer diameter | 320.0 (mm) |
| Inner diameter | 260.1 (mm) |
| Height | 39.6 (mm) |
| Mass | 1622 (g) |
| Operating temperature | 0-45 (°C) |
| Operating relative humidity | 20-85, non condensing (%) |
| Risk group according to CEI EN 62471:2010 | Exempt |
Informații suplimentare
| Cable length | 1000 (mm) |
|---|---|
| Max duty cycle | 10 (%) |
| Light color, peak wavelength | white, 6300 K |
| Accessory developer | Opto |
| Lux at max wd | 2860 (lux) |
| Connector | Flying leads |
| Supply voltage | 24 (V) |
| Height | 39.6 (mm) |
| Operating temperature | 0-45 (°C) |
| Outer diameter | 320.0 (mm) |
| Color | white, 6300 K |
| Operating relative humidity | 20-85, non condensing (%) |
| Risk group (cei 62471) | Exempt |
| Current | 1200 (mA) |
| Mass | 1622 (g) |
| Power consumption | 28.8 (W) |
| Max pulse duration | 10 (ms) |
| Estimated mtbf | > 20000 (hours) |
| Illumination area (outer) | 306.2 (mm) |
| Illumination area (inner) | 264.0 (mm) |
| Optimal working distance | 110-150 (mm) |
| Number of led rows | 1 |
| Emission angle | 0 (deg) |
| Max pulse voltage | 24-48 (36 recomended) (V) |
| Inner diameter | 260.1 (mm) |
| Lux at min wd | 3080 (lux) |
| Max pulse current | 3600 (mA) |
| Operation power source | 1200 (mA) |
