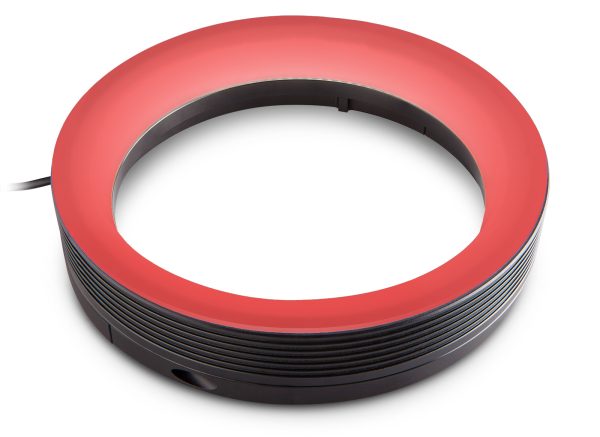

LTRN165R45

LTRN165R45

Specification Value
Illumination area outer diameter 164.5 (mm)
Illumination area inner diameter 134.5 (mm)
Emission angle 45 (deg)
Optimal working distance 30-50 (mm)
Number of LED rows 1
Light color, peak wavelength red, 630 nm
Illuminance at minimum working distance 7610 (lux)
Illuminance at maximum working distance 6190 (lux)
Supply voltage 24 (V)
Current 500 (mA)
Power consumption 12.0 (W)
Estimated MTBF > 20000 (hours)
Max pulse voltage 24-48 (36 recomended) (V)
Max pulse current 1500 (mA)
Max duty-cycle 10 (%)
Max pulse duration 10 (ms)
Connector Flying leads
Cable length 1000 (mm)
Outer diameter 175.0 (mm)
Inner diameter 135.0 (mm)
Height 36.5 (mm)
Mass 560 (g)
Operating temperature 0-45 (°C)
Operating relative humidity 20-85, non condensing (%)
Risk group according to CEI EN 62471:2010 Exempt
Adaugă la oferte
Categorie: Etichetă: Brand:

Descriere

  1. ± 15%.
  2. Tolerance ± 2%.
  3. At 25°C.
  4. Constant voltage power supply.
  5. Constant current power supply.

Informații suplimentare

Cable length

1000 (mm)
Max duty cycle

10 (%)
Light color, peak wavelength

red, 630 nm
Accessory developer

Opto
Lux at max wd

6190 (lux)
Connector

Flying leads
Supply voltage

24 (V)
Height

36.5 (mm)
Operating temperature

0-45 (°C)
Outer diameter

175.0 (mm)
Color

red, 630 nm
Operating relative humidity

20-85, non condensing (%)
Risk group (cei 62471)

Exempt
Current

500 (mA)
Mass

560 (g)
Power consumption

12.0 (W)
Max pulse duration

10 (ms)
Estimated mtbf

> 20000 (hours)
Illumination area (outer)

164.5 (mm)
Illumination area (inner)

134.5 (mm)
Optimal working distance

30-50 (mm)
Number of led rows

1
Emission angle

45 (deg)
Max pulse voltage

24-48 (36 recomended) (V)
Inner diameter

135.0 (mm)
Lux at min wd

7610 (lux)
Max pulse current

1500 (mA)
Operation power source

500 (mA)
