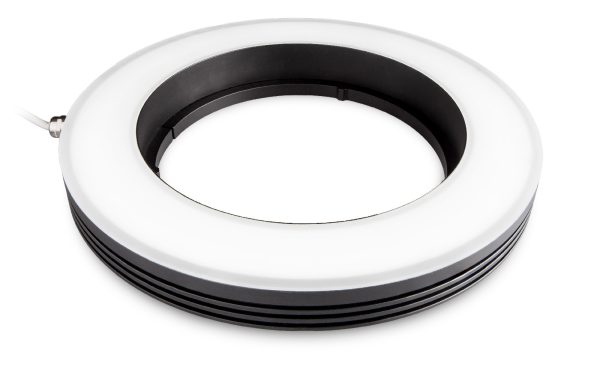

LTRN120NW

LTRN120NW

Specification Value
Illumination area outer diameter 276.0 (mm)
Illumination area inner diameter 226.0 (mm)
Emission angle 0 (deg)
Optimal working distance 280-365 (mm)
Number of LED rows 1
Light color, peak wavelength white, 6300 K
Illuminance at minimum working distance 2730 (lux)
Illuminance at maximum working distance 1800 (lux)
Supply voltage 24 (V)
Current 1690 (mA)
Power consumption 40.6 (W)
Estimated MTBF > 20000 (hours)
Max pulse voltage 24-48 (36 recomended) (V)
Max pulse current 5070 (mA)
Max duty-cycle 10 (%)
Max pulse duration 10 (ms)
Connector Flying leads
Cable length 1000 (mm)
Outer diameter 290.0 (mm)
Inner diameter 180.0 (mm)
Height 39.6 (mm)
Mass 1310 (g)
Operating temperature 0-35 (°C)
Operating relative humidity 20-85, non condensing (%)
Risk group according to CEI EN 62471:2010 Exempt
Adaugă la oferte
Categorie: Etichetă: Brand:

Descriere

  1. ± 15%.
  2. Tolerance ± 2%.
  3. At 25°C.
  4. Constant voltage power supply.
  5. Constant current power supply.

Informații suplimentare

Cable length

1000 (mm)
Max duty cycle

10 (%)
Light color, peak wavelength

white, 6300 K
Accessory developer

Opto
Lux at max wd

1800 (lux)
Connector

Flying leads
Supply voltage

24 (V)
Height

39.6 (mm)
Operating temperature

0-35 (°C)
Outer diameter

290.0 (mm)
Color

white, 6300 K
Operating relative humidity

20-85, non condensing (%)
Risk group (cei 62471)

Exempt
Current

1690 (mA)
Mass

1310 (g)
Power consumption

40.6 (W)
Max pulse duration

10 (ms)
Estimated mtbf

> 20000 (hours)
Illumination area (outer)

276.0 (mm)
Illumination area (inner)

226.0 (mm)
Optimal working distance

280-365 (mm)
Number of led rows

1
Emission angle

0 (deg)
Max pulse voltage

24-48 (36 recomended) (V)
Inner diameter

180.0 (mm)
Lux at min wd

2730 (lux)
Max pulse current

5070 (mA)
Operation power source

1690 (mA)
