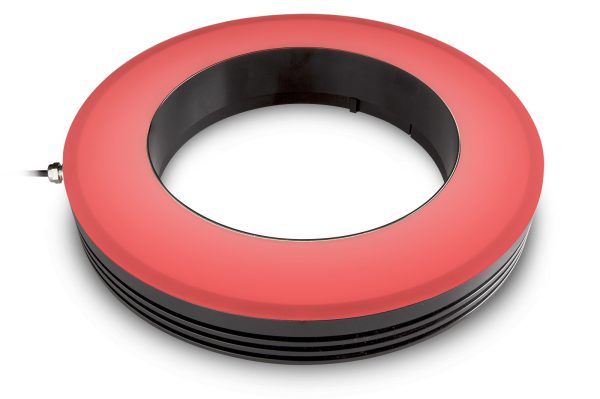

LTRN096RD

Specification	Value
Illumination area outer diameter	207.0 (mm)
Illumination area inner diameter	157.0 (mm)
Emission angle	0 (deg)
Optimal working distance	350-450 (mm)
Number of LED rows	1
Light color, peak wavelength	red, 630 nm
Illuminance at minimum working distance	1010 (lux)
Illuminance at maximum working distance	706 (lux)
Supply voltage	24 (V)
Current	600 (mA)
Power consumption	14.4 (W)
Estimated MTBF	> 20000 (hours)
Max pulse voltage	24-48 (36 recomended) (V)
Max pulse current	1800 (mA)
Max duty-cycle	10 (%)
Max pulse duration	10 (ms)
Connector	Flying leads
Cable length	1000 (mm)
Outer diameter	221.0 (mm)
Inner diameter	143.0 (mm)
Height	39.6 (mm)
Mass	783 (g)
Operating temperature	0-45 (°C)
Operating relative humidity	20-85, non condensing (%)
Risk group according to CEI EN 62471:2010	Exempt

Categorie: Ring Lights Etichetă: Opto Brand: Opto

Descriere

Cable length	1000 (mm)
Max duty cycle	10 (%)
Light color, peak wavelength	red, 630 nm
Accessory developer	Opto
Lux at max wd	706 (lux)
Connector	Flying leads
Supply voltage	24 (V)
Height	39.6 (mm)
Operating temperature	0-45 (°C)
Outer diameter	221.0 (mm)
Color	red, 630 nm
Operating relative humidity	20-85, non condensing (%)
Risk group (cei 62471)	Exempt
Current	600 (mA)
Mass	783 (g)
Power consumption	14.4 (W)
Max pulse duration	10 (ms)
Estimated mtbf	> 20000 (hours)
Illumination area (outer)	207.0 (mm)
Illumination area (inner)	157.0 (mm)
Optimal working distance	350-450 (mm)
Number of led rows	1
Emission angle	0 (deg)
Max pulse voltage	24-48 (36 recomended) (V)
Inner diameter	143.0 (mm)
Lux at min wd	1010 (lux)
Max pulse current	1800 (mA)
Operation power source	600 (mA)
