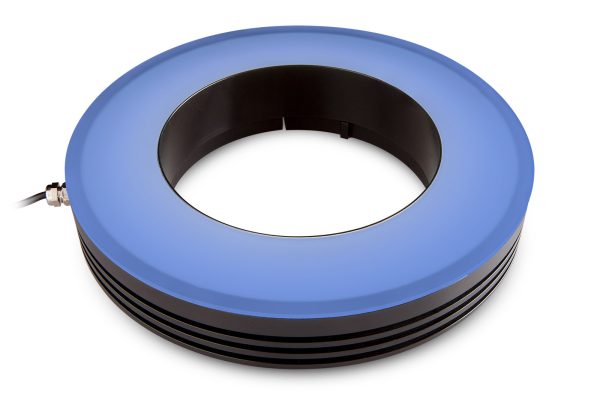

LTRN080BL

Specification	Value
Illumination area outer diameter	178.0 (mm)
Illumination area inner diameter	120.0 (mm)
Emission angle	0 (deg)
Optimal working distance	280-365 (mm)
Number of LED rows	1
Light color, peak wavelength	blue, 470 nm
Illuminance at minimum working distance	1900 (lux)
Illuminance at maximum working distance	1250 (lux)
Supply voltage	24 (V)
Current	567 (mA)
Power consumption	13.6 (W)
Estimated MTBF	> 20000 (hours)
Max pulse voltage	24-48 (36 recomended) (V)
Max pulse current	1701 (mA)
Max duty-cycle	10 (%)
Max pulse duration	10 (ms)
Connector	Flying leads
Cable length	1000 (mm)
Outer diameter	192.0 (mm)
Inner diameter	116.0 (mm)
Height	39.6 (mm)
Mass	651 (g)
Operating temperature	0-35 (°C)
Operating relative humidity	20-85, non condensing (%)
Risk group according to CEI EN 62471:2010	Exempt

Categorie: Ring Lights Etichetă: Opto Brand: Opto

Descriere

Cable length	1000 (mm)
Max duty cycle	10 (%)
Light color, peak wavelength	blue, 470 nm
Accessory developer	Opto
Lux at max wd	1250 (lux)
Connector	Flying leads
Supply voltage	24 (V)
Height	39.6 (mm)
Operating temperature	0-35 (°C)
Outer diameter	192.0 (mm)
Color	blue, 470 nm
Operating relative humidity	20-85, non condensing (%)
Risk group (cei 62471)	Exempt
Current	567 (mA)
Mass	651 (g)
Power consumption	13.6 (W)
Max pulse duration	10 (ms)
Estimated mtbf	> 20000 (hours)
Illumination area (outer)	178.0 (mm)
Illumination area (inner)	120.0 (mm)
Optimal working distance	280-365 (mm)
Number of led rows	1
Emission angle	0 (deg)
Max pulse voltage	24-48 (36 recomended) (V)
Inner diameter	116.0 (mm)
Lux at min wd	1900 (lux)
Max pulse current	1701 (mA)
Operation power source	567 (mA)
