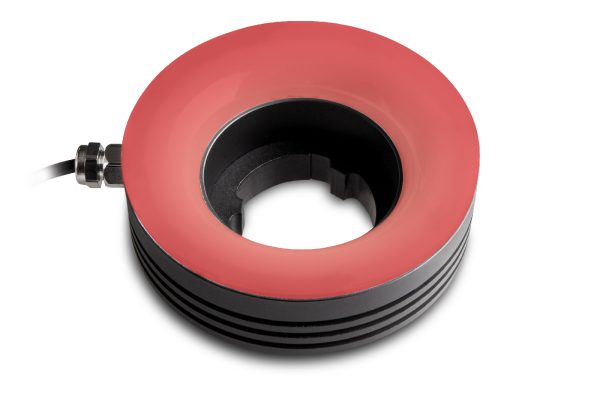

LTRN075R45

LTRN075R45

Specification Value
Illumination area outer diameter 65.4 (mm)
Illumination area inner diameter 43.8 (mm)
Emission angle 45 (deg)
Optimal working distance 20-50 (mm)
Number of LED rows 1
Light color, peak wavelength red, 630 nm
Illuminance at minimum working distance 6350 (lux)
Illuminance at maximum working distance 3160 (lux)
Supply voltage 24 (V)
Current 75 (mA)
Power consumption 1.8 (W)
Estimated MTBF > 20000 (hours)
Max pulse voltage 24-48 (36 recomended) (V)
Max pulse current 225 (mA)
Max duty-cycle 10 (%)
Max pulse duration 10 (ms)
Connector Flying leads
Cable length 1000 (mm)
Outer diameter 75.4 (mm)
Inner diameter 28.0 (mm)
Height 32.0 (mm)
Mass 100 (g)
Operating temperature 0-45 (°C)
Operating relative humidity 20-85, non condensing (%)
Risk group according to CEI EN 62471:2010 Exempt
Adaugă la oferte
Categorie: Etichetă: Brand:

Descriere

  1. ± 15%.
  2. Tolerance ± 2%.
  3. At 25°C.
  4. Constant voltage power supply.
  5. Constant current power supply.

Informații suplimentare

Cable length

1000 (mm)
Max duty cycle

10 (%)
Light color, peak wavelength

red, 630 nm
Accessory developer

Opto
Lux at max wd

3160 (lux)
Connector

Flying leads
Supply voltage

24 (V)
Height

32.0 (mm)
Operating temperature

0-45 (°C)
Outer diameter

75.4 (mm)
Color

red, 630 nm
Operating relative humidity

20-85, non condensing (%)
Risk group (cei 62471)

Exempt
Current

75 (mA)
Mass

100 (g)
Power consumption

1.8 (W)
Max pulse duration

10 (ms)
Estimated mtbf

> 20000 (hours)
Illumination area (outer)

65.4 (mm)
Illumination area (inner)

43.8 (mm)
Optimal working distance

20-50 (mm)
Number of led rows

1
Emission angle

45 (deg)
Max pulse voltage

24-48 (36 recomended) (V)
Inner diameter

28.0 (mm)
Lux at min wd

6350 (lux)
Max pulse current

225 (mA)
Operation power source

75 (mA)
