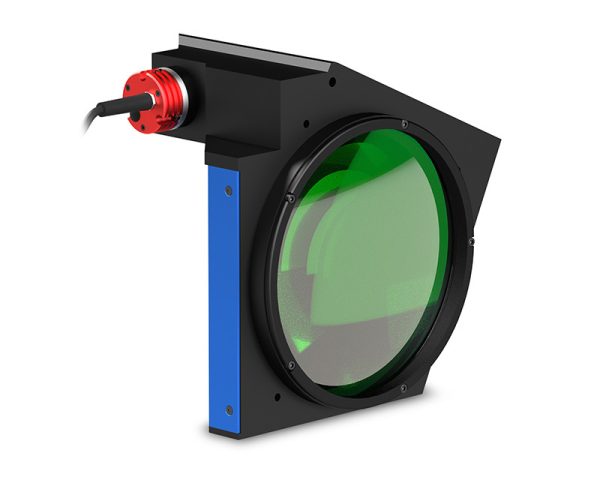

LTCLCR120-G

LTCLCR120-G

Specification Value
Minimum beam shape dimension Ø = 156, x = 130 (mm)
Working distance range 220 – 440 (mm)
Light color, peak wavelength green, 525 nm
Spectral FWHM 40 (nm)
Supply voltage 12-24 (V)
Max power consumption 2.5 (W)
LED forward voltage typical (max) 3.3 (4.0) (V)
Max LED forward current 350 (mA)
Max pulse current 2000 (mA)
Connector M8
Cables CB244P1500 included
Dimension A 181.4 (mm)
Dimension B 220.0 (mm)
Dimension C 230.6 (mm)
Mass 9020 (g)
Operating temperature 0-40 (°C)
Storage temperature 0-50 (°C)
Operating relative humidity 20-85, non condensing (%)
Installation Indoor use only
Risk group according to CEI EN 62471:2010 Risk group 1
Adaugă la oferte
Categorie: Etichetă: Brand:

Descriere

  1. Beam shape is not circular. See Tech Info for minimun beam dimensions.
  2. Opto Engineering® recommends green light for high precision measurement applications
  3. Tolerance ± 10%
  4. At max forward current. Tolerance is ± 0.06V on forward voltage measurements
  5. In continuous mode (non-pulsed)
  6. At pulse width <= 10 ms and duty cycle <= 10%. Built-in electronics board must be bypassed (see tech info)
  7. Nominal value, with no spacers in place

Informații suplimentare

Dimension A

181.4 (mm)
Installation

Indoor use only
Light color, peak wavelength

green, 525 nm
Accessory developer

Opto
Minimum beam shape dimension

Ø = 156, x = 130 (mm)
Dimension C

230.6 (mm)
Mass

9020 (g)
Connector

M8
Supply voltage

12-24 (V)
Operating temperature

0-40 (°C)
Storage temperature

0-50 (°C)
Dimension B

220.0 (mm)
Color

green, 525 nm
Working distance range

220 – 440 (mm)
Max power consumption

2.5 (W)
Operating relative humidity

20-85, non condensing (%)
Risk group (cei 62471)

Risk group 1
Spectral fwhm

40 (nm)
Cables

CB244P1500 included
Led fwd volt (typ/max)

3.3 (4.0) (V)
Max led forward current

350 (mA)
Max pulse current

2000 (mA)
Operation power source
