Descriere
- At pattern emitting surface.
- Continuous mode, using the integrated electronic driver.
- Strobe mode.

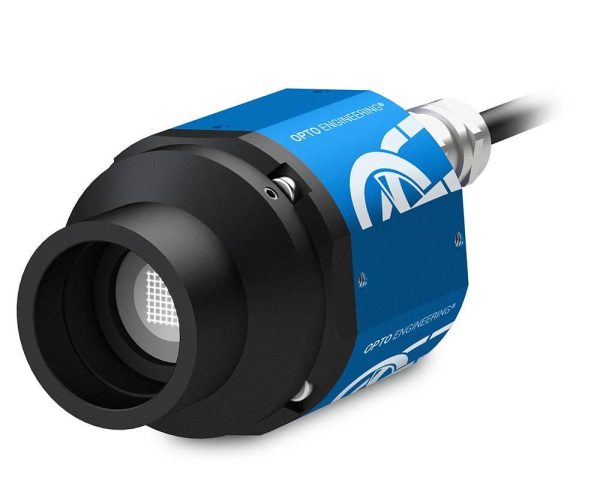

LT2PRXP-W-C
| Specification | Value |
|---|---|
| Active area diameter | 17.6 (mm) |
| Light color, peak wavelength | white, 5700 K |
| Spectral FWHM | – (nm) |
| Illuminance (continuous) | – (klux) |
| Irradiance (continuous) | – (W/m2) |
| Illuminance (strobe) | 3123 (klux) |
| Irradiance (strobe) | 10750 (W/m2) |
| Operating mode | Strobe |
| Power supply mode | Constant current driving |
| Supply voltage | – (V) |
| Current | – (A) |
| Power consumption | – (W) |
| Peak power consumption | 43.2 (W) |
| Max LED forward current | 3.0 (A) |
| Min pulse duration | – (µs) |
| Max pulse duration | 10 (ms) |
| Max duty-cycle | 10 (%) |
| Typical pulse delay | – (ns) |
| Typical jitter | – (ns) |
| I/O interface | – |
| Connector | 1x M12 straight plug male connector |
| Cables | not included |
| Mount | C |
| Phase adjustment | Yes |
| Length | 67.5 (mm) |
| Width | 45.0 (mm) |
| Height | 45.0 (mm) |
| Mass | 199 (g) |
| Operating temperature | 0-40 (°C) |
| Storage temperature | 0-50 (°C) |
| Operating relative humidity | 20-85, non condensing (%) |
| Installation | Indoor use only |
| IP rating | IP30 |
| Risk group according to CEI EN 62471:2010 | Risk group 1 |
Informații suplimentare
| Mount | C |
|---|---|
| Color | white, 5700 K |
| Operating temperature | 0-40 (°C) |
| Width | 45.0 (mm) |
| Height | 45.0 (mm) |
| Supply voltage | |
| Connector | 1x M12 straight plug male connector |
| Installation | Indoor use only |
| Active area diameter | 17.6 (mm) |
| Mass | 199 (g) |
| Accessory developer | Opto |
| Optmag | |
| Light color, peak wavelength | white, 5700 K |
| Operation power source | |
| Lens mount | C |
| Ip rating | IP30 |
| Storage temperature | 0-50 (°C) |
| Length | 67.5 (mm) |
| Operating relative humidity | 20-85, non condensing (%) |
| Cables | not included |
| Irradiance (strobe) | 10750 (W/m2) |
| Illuminance (strobe) | 3123 (klux) |
| Irradiance (continuous) | |
| Illuminance (continuous) | |
| Max led forward current | 3.0 (A) |
| I/o interface | – |
| Power supply mode | Constant current driving |
| Current | |
| Max pulse duration | 10 (ms) |
| Max duty cycle | 10 (%) |
| Peak power consumption | 43.2 (W) |
| Power consumption | |
| Risk group (cei 62471) | Risk group 1 |
| Phase adjustment | Yes |
| Operating mode | Strobe |
| Lighting area (mm) |
