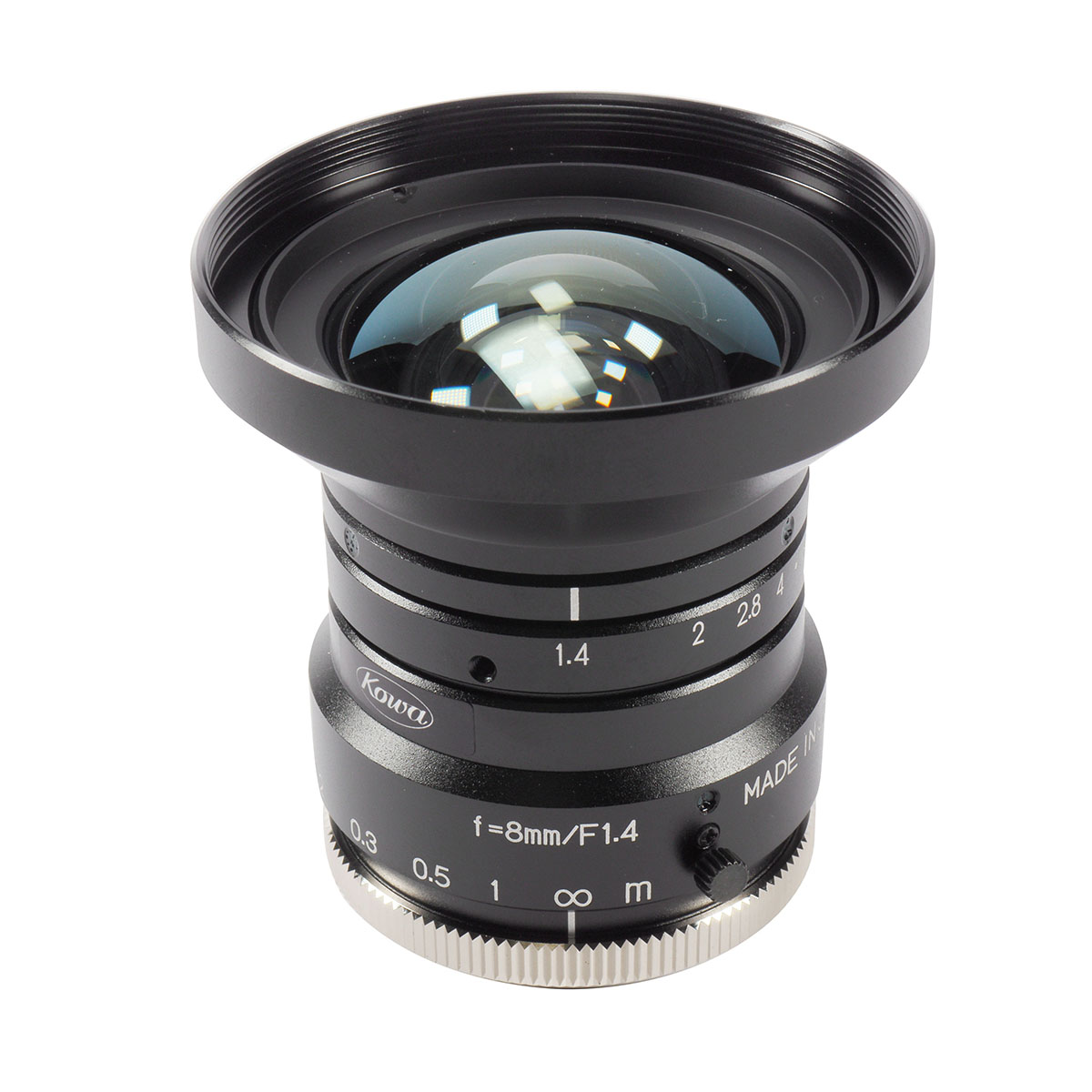

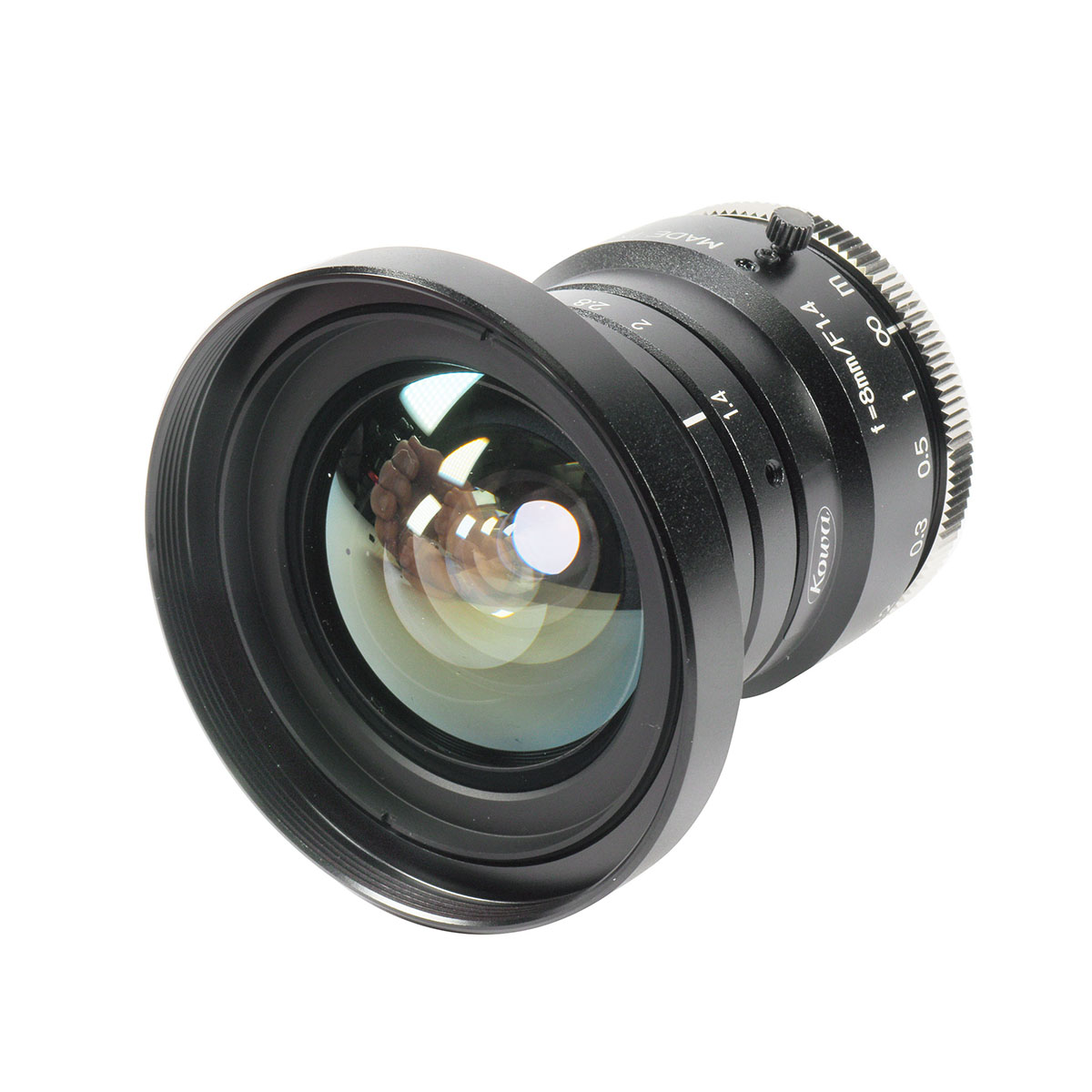

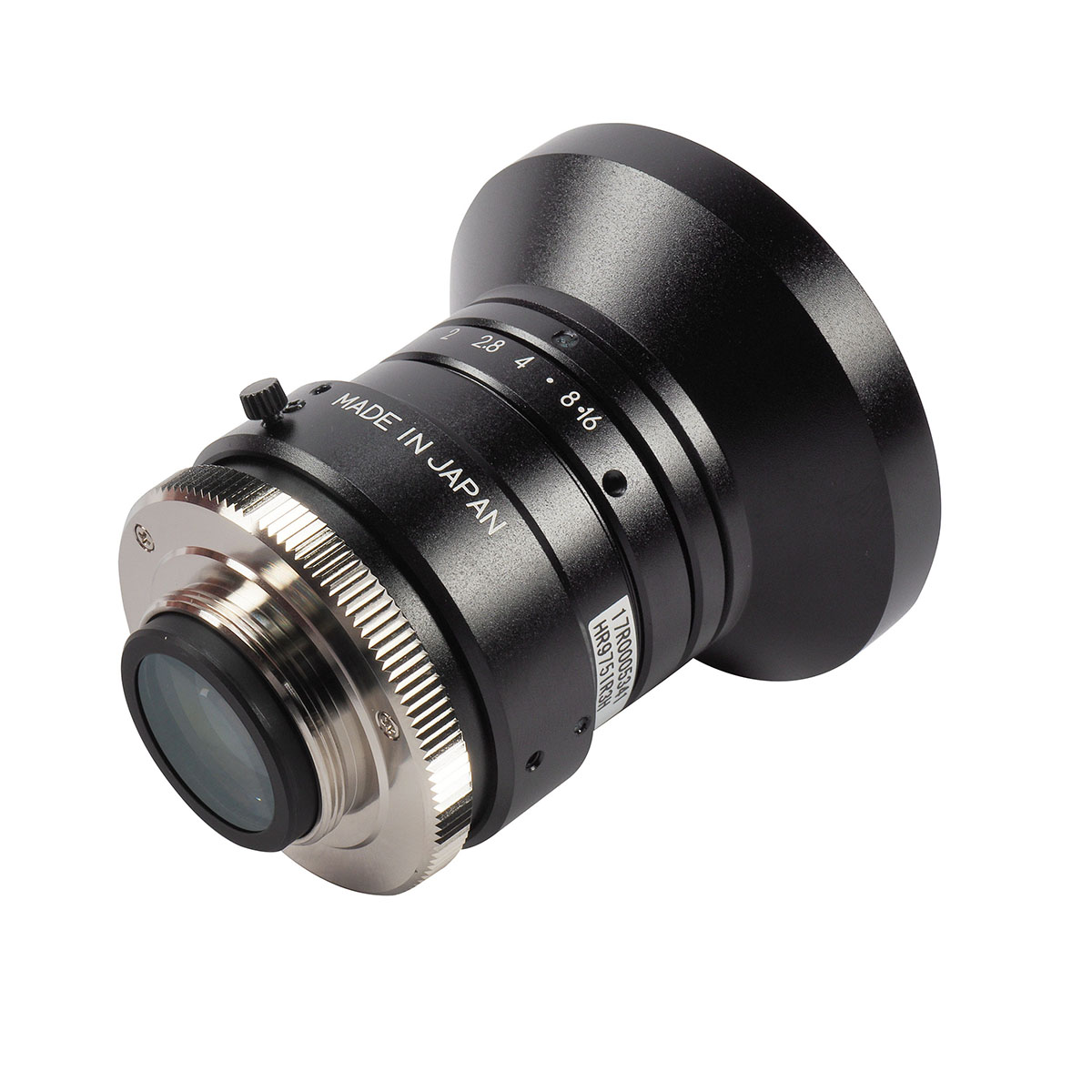

Product Information LM8HC-SW | 1″ 8mm SWIR C-Mount Lens1″ Megapixel C-mount Industrial Lens
Focal length 8mm
Optimized for SWIR: High transmission from 800nm up to 1900nm
For applications such as solar cell inspection, waste sorting and biological research
Designed for: 1
Compatible: 2/3,1/1.8,1/2,1/3
| Iris control | Manual |
| Iris range (f stop) | 1,4 – 16 |
| Lens type | Fixed Focal Lens |
| Wavelength range | SWIR (1000nm – 2000nm) |
| Focusing range (m) | 0,3 – ∞ |
| Focus control | Manual |
| Resolution center | 120 |
| Resolution corner | 80 |
| Distortion (tv) (%) | -1,2 |
| Back focus in air (mm) | 11,2 |
| Filter size (mm) | M55 x P0,75 |
| Size (mm) | Ø57 X 58 |
| Weight (g) | 200 |
| Temperature range (℃) | -10°C – +50°C |
| Application | Machine Vision |
For more information about the features, visit the Kowa Product Documentation.
