L5087MX470E

Image Sensor	CMOS
Shutter	Global
Resolution	8192 × 4
Line Rate	200K
Bit Depth	10bit
Mono/Color	Mono
Pixel Size	7 μm × 7 μm
S/N Ratio	40dB
Dynamic Range	63.3dB
Image Format	Mono8/Mono10
ROI	Support
X Flip	Support
Gain	1~32
Exposure Time	4μs~100ms
Trigger Mode	Software Trigger/Hardware Trigger/Free Run Mode
TDI Stages	Support 2-TDI, 4-TDI
User Setting	Support three sets of user-defined configurations
Port	CXP-6
Lens Mount	M72 × 0.75
Power Supply	DC12-24V power supply via 12-pin Hirose interface
Power Consumption	24V ≈ 9W

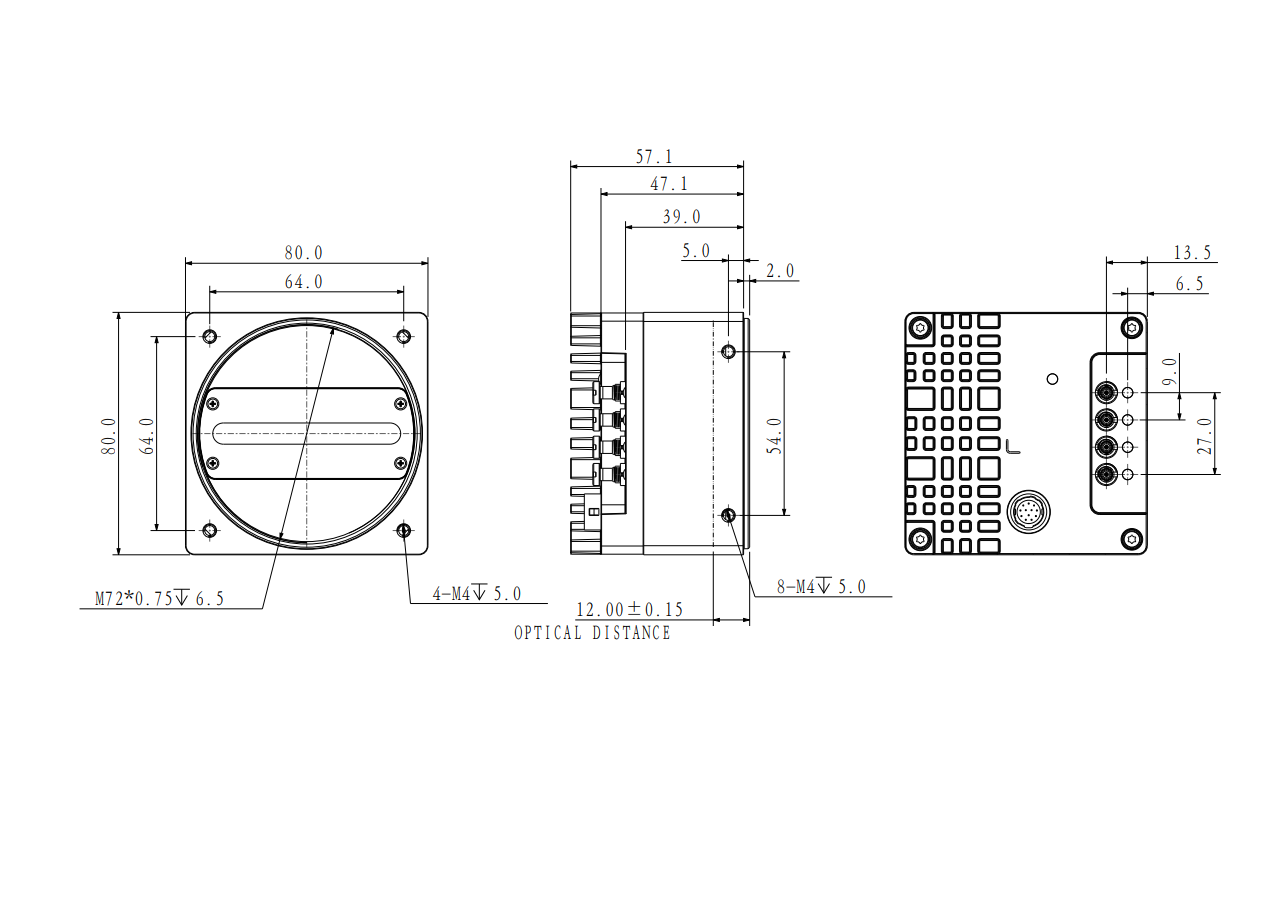

Product Dimensions	80mm×80mm×57.1mm（Not including rear case connector）
Net Weight	520g
Storage Temperature	-30℃~+80℃
Operating Temperature	-30℃~+50℃

Descriere

8K resolution?Maximum 200K line rate?4 x 6.25Gbps theoretical transfer bandwidth
High dynamic range, good signal-to-noise ratio, excellent image quality
Supports multi-ROI FPN correction
Support ISP functions such as Gamma, LUT, white balance, etc. Support software trigger/capture card trigger/free run multiple trigger modes
Conforms to CoaXPress protocol and GenICam standard
Support PoCXP and DC 24V power supply

Bit depth	10bit
Dynamic range	63.3dB
Exposure time	4us~100mS
Gain	1~32
Image format	Mono8/Mono10
Image sensor	CMOS
Lens mount	M72 x 0.75
Line-rate	200K
Pixel size	7 um x 7 um
Port	CXP-6
Power consumption	24V ≈ 9W
Power supply	DC12-24V power supply via 12-pin Hirose interface
Resolution	8192 x 4
Roi	Support
Shutter	Global
Storage temperature	-30℃~+80℃
Trigger mode	Software Trigger/Hardware Trigger/Free Run Mode
User setting	Support three sets of user-defined configurations
X flip	Support
Mono-color	Mono
S/n ratio	40dB
Tdi stages	Support 2-TDI, 4-TDI
