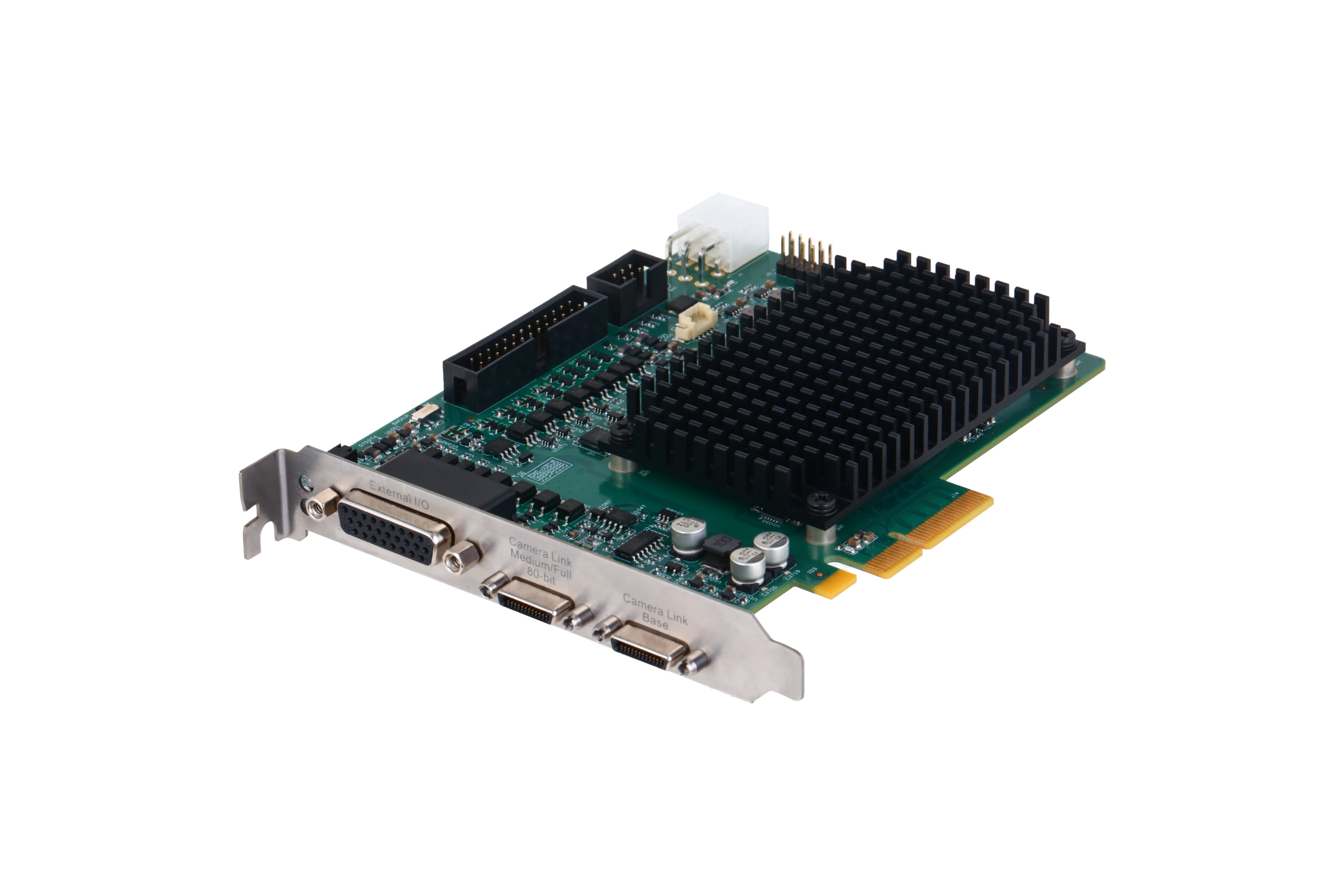

GCL-5F21E

Transfer Rate	6.8 Gbps(850 MB/s)
Interface	SDRx2
I/O Lines	10 I/O lines: • 2X differential input(Single-end Supported) • 4X Opto-isolated Input (DIN) • 4X Opto-isolated Output (DOUT)
Connector	26-pin 3-row high-density female sub-D connector
Type	CamerLink Frame Grabber
Model	GCL-5F21E
Protocol	Camera Link 2.0
Pixel Format	Mono 8/10/12 Bayer 8/10/12 RGB 8
Transmission Configurations	Base/Medium/Full/80bit
Clock Frequency	20MHz~85MHz
Taps	1/2/3/4/8/10tap
On-board Memory	1GB
Number of Cameras	2X Base Mode 1X Medium/Full/80-bit Mode
Software	Mvviewer
Operating System	Windows 7/8/10 64 bit
Power Supply	PCIe/ATX 6-pin Connector
Power Consumption	8W (without PoCL)
Product Dimensions	151.6mmx126.3mmx21.6mm
Net Weight	175.1g
Host Bus Standard	PCIe Gen2 X4
Host Bus Link speed	5GT/s?PCIe 2.0?
Delivery bandwidth	1780MB/s(Peak delivery bandwidth), 1650 MB/s (Sustained delivery bandwidth)
Operating Temperature	0~50?
Storage Temperature	-20~70?
Operating Humidity	10% ~ 90%RH ,non-condensing
Storage Humidity	10% ~ 90%RH ,non-condensing

Descriere

Connector	26-pin 3-row high-density female sub-D connector
Interface	SDRx2
Operating humidity	10% ~ 90%RH ,non-condensing
Power consumption	8W (without PoCL)
Power supply	PCIe/ATX 6-pin Connector
Product type	CamerLink Frame Grabber
Software	Mvviewer
Storage temperature	-20~70℃
Protocol	Camera Link 2.0
Number of cameras	2X Base Mode 1X Medium/Full/80-bit Mode
Operating system	Windows 7/8/10 64 bit
Host bus standard	PCIe Gen2 X4
Host bus link speed	5GT/s（PCIe 2.0）
Delivery bandwidth	1780MB/s(Peak delivery bandwidth), 1650 MB/s (Sustained delivery bandwidth)
Transfer rate	6.8 Gbps(850 MB/s)
Storage humidity	10% ~ 90%RH ,non-condensing
I/o lines	10 I/O lines: • 2X differential input(Single-end Supported) • 4X Opto-isolated Input (DIN) • 4X Opto-isolated Output (DOUT)
Pixel format	Mono 8/10/12 Bayer 8/10/12 RGB 8
Transmission configurations	Base/Medium/Full/80bit
Clock frequency	20MHz~85MHz
Taps	1/2/3/4/8/10tap
On board memory	1GB
