F46-6035-M58

F46-6035-M58

Series Large Area Industrial lens
Model F46-6035-M58
Focal Length 60 mm
Aperture F3.5 – F16
Image Sensor Size ?46 mm
Focus Range 0.32 m to infinite
Optical Distortion -0.2%
TV Distortion -0.08%
Field of View 33° x 26.6° x 20.2° (43.5 mm x 36.2 mm x 24.1 mm)
Relative Illumination 73% (F4.3); 83% (F4.0)
CRA?Chief Ray Angle) 8.3°
Spectral Range 436 nm?656 nm
Spectral Transmission T?85%
Camera Mount M58
Filter Thread No
Focus Control Manual
Iris Control Manual
Product Dimensions 101.3 x ?61 mm
Net Weight 503 g
Operating Temperature -20°C ?+50°C
Adaugă la oferte
Categorie: Etichetă: Brand:

Descriere

  • Support up to ?46mm camera sensors
  • High resolution for 65MP camera in full of view?consistent clarity at center and edge?
  • Low distorion?TV distorion is less than 0.1%?
  • Stable sharpness quality when temperature varies from -20?~50??

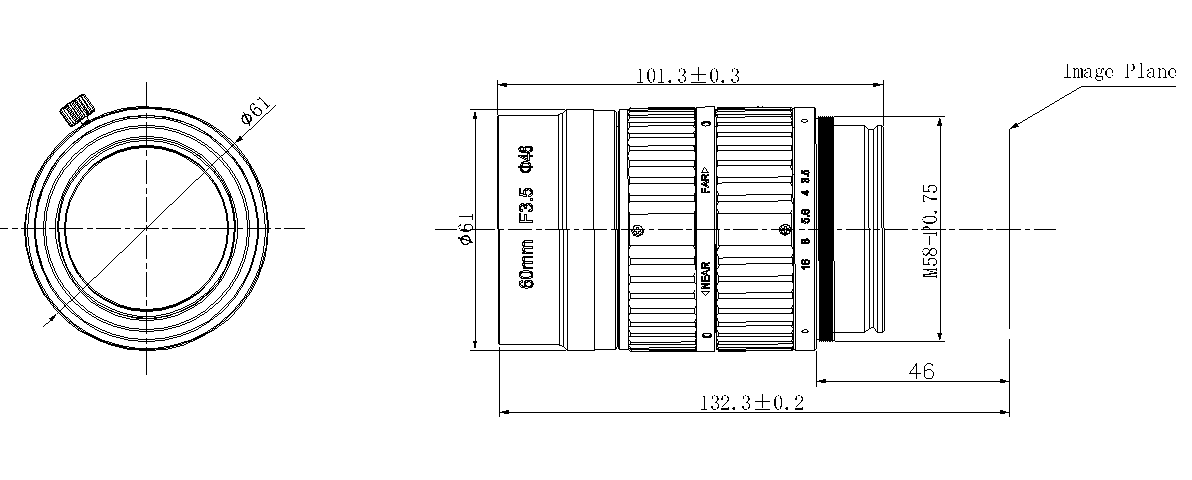

Dimensions

Downloads

Informații suplimentare

Field of view

33° x 26.6° x 20.2° (43.5 mm x 36.2 mm x 24.1 mm)
Focus control

Manual
Cra (chief ray angle)

8.3°
