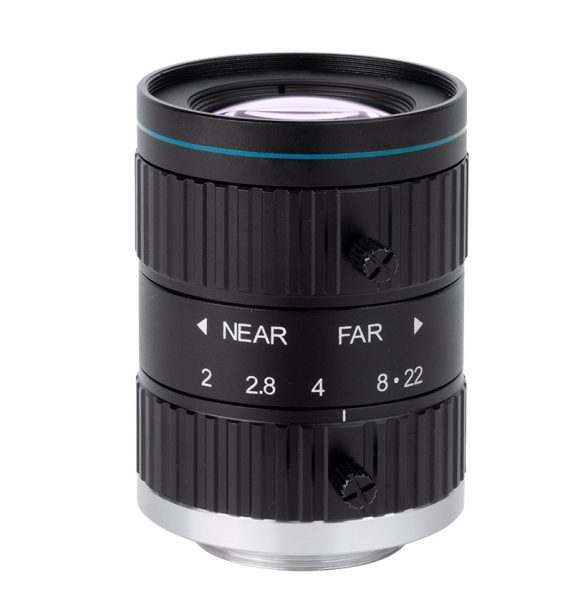

EN8MPL1220

EN8MPL1220

Specification Value
Focal length 12 (mm)
Magnification 0.108 (x)
Image circle diameter 16.0 (mm)
Max sensor size 1″
1/2″ 37.3 (deg)
2/3″ 50.2 (deg)
1″ 69.6 (deg)
1/2″ 59.31 x 44.49
2/3″ 78.78 x 65.71
1″ 115.29 x 91.10
Working distance range 0.08 – inf (m)
f/N 2.0 – 22
Back focal length 15.07 (mm)
Distortion on 1/2″ 1.27 (%)
Distortion on 2/3″ 2.25 (%)
Distortion on 1″ 4.10 (%)
Iris control Manual
Focus control Manual
Mount C
Filter thread M35.5 x 0.5
Outer diameter 39.6 (mm)
Length 48.9 (mm)
Mass 130 (g)
Set screw thread M2
Operating temperature -10-+50 (°C)
Adaugă la oferte
Categorie: Etichetă: Brand:

Descriere

  1. Calculated at minimum object distance.
  2. Working distance: distance between the front end of the mechanics and the object.
  3. Value calculated at the corner point of the sensor diagonal. For distortion graphs see datasheet
  4. Measured from the front end of the mechanics to the camera flange at infinity focus.

Informații suplimentare

Lens mount

C
F/n

2.0 – 22
Optmag

0.108 (x)
Accessory developer

Opto
Zoom ratio

0.108 (x)
Magnification

0.108 (x)
Max sensor size

1″
Distortion on 1

4.10 (%)
Mass

130 (g)
1

115.29 x 91.10
Image circle diameter

16.0 (mm)
Length

48.9 (mm)
Operating temperature

-10-+50 (°C)
Focal length

12 (mm)
Working distance range

0.08 – inf (m)
Back focal length

15.07 (mm)
Distortion on 1 2

1.27 (%)
Distortion on 2 3

2.25 (%)
Iris control

Manual
Focus control

Manual
Filter thread

M35.5 x 0.5
Outer diameter

39.6 (mm)
Set screw thread

M2
Mount

C
Focal length (mm)

12 (mm)
Sensor size
