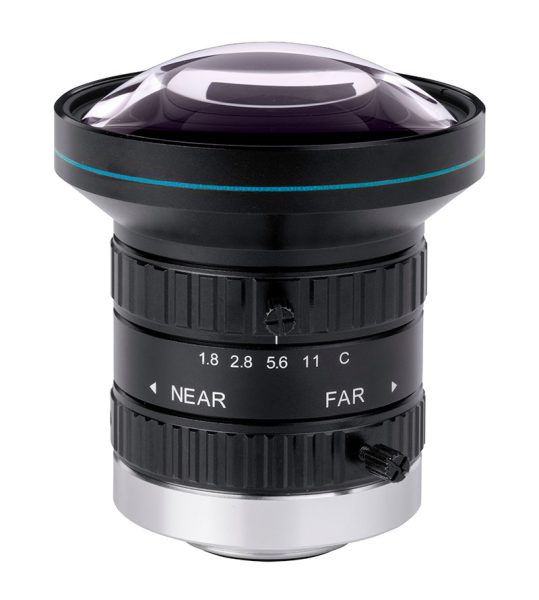

EN8MPL0818

EN8MPL0818

Specification Value
1″ 90.1 (deg)
Focal length 8 (mm)
Magnification 0.026 (x)
Image circle diameter 16.0 (mm)
Max sensor size 1″
1/2″ 52.3 (deg)
2/3″ 68.6 (deg)
1/2″ 246.15 x 184.62
2/3″ 326.92 x 272.69
1″ 478.46 x 378.08
Working distance range 0.3 – inf (m)
f/N 1.8 – close
Back focal length 12.70 (mm)
Distortion on 1/2″ 2.14 (%)
Distortion on 2/3″ 3.25 (%)
Distortion on 1″ 4.12 (%)
Iris control Manual
Focus control Manual
Mount C
Filter thread –
Outer diameter 56.8 (mm)
Length 67.0 (mm)
Mass 77 (g)
Set screw thread M2
Operating temperature -10-+50 (°C)
Adaugă la oferte
Categorie: Etichetă: Brand:

Descriere

  1. Calculated at minimum object distance.
  2. Working distance: distance between the front end of the mechanics and the object.
  3. Value calculated at the corner point of the sensor diagonal. For distortion graphs see datasheet
  4. Measured from the front end of the mechanics to the camera flange at infinity focus.

Informații suplimentare

Lens mount

C
F/n

1.8 – close
Optmag

0.026 (x)
Accessory developer

Opto
Zoom ratio

0.026 (x)
Magnification

0.026 (x)
Max sensor size

1″
Distortion on 1

4.12 (%)
Mass

77 (g)
1

478.46 x 378.08
Image circle diameter

16.0 (mm)
Length

67.0 (mm)
Operating temperature

-10-+50 (°C)
Focal length

8 (mm)
Working distance range

0.3 – inf (m)
Back focal length

12.70 (mm)
Distortion on 1 2

2.14 (%)
Distortion on 2 3

3.25 (%)
Iris control

Manual
Focus control

Manual
Filter thread

–
Outer diameter

56.8 (mm)
Set screw thread

M2
Mount

C
Focal length (mm)

8 (mm)
Sensor size
