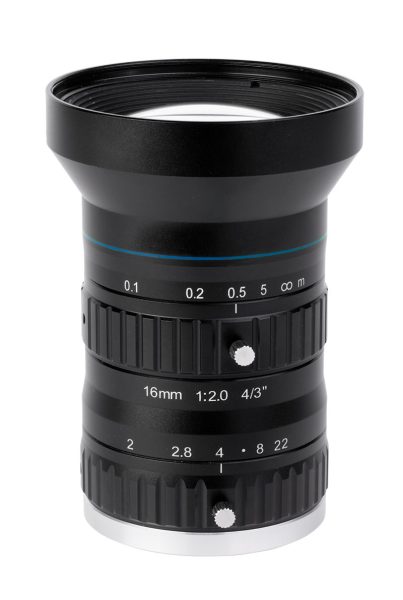

EN10MPL1620

EN10MPL1620

Specification Value
Focal length 16 (mm)
Magnification 0.132 (x)
Image circle diameter 23.0 (mm)
Max sensor size 4/3″
2/3″ 38.3 (deg)
1″ 54.0 (deg)
4/3″ 72.9 (deg)
2/3″ 64.39 x 53.71
1″ 94.24 x 74.47
4/3″ 143.41 x 80.38
Working distance range 0.1 – inf (m)
f/N 2.0 – 22
Back focal length 21.00 (mm)
Distortion on 2/3″ 1.06 (%)
Distortion on 1″ 1.92 (%)
Distortion on 4/3″ 2.81 (%)
Iris control Manual
Focus control Manual
Mount C
Filter thread M58 x 0.75
Outer diameter 60.0 (mm)
Length 85.9 (mm)
Mass 338 (g)
Set screw thread M2
Operating temperature -10-+50 (°C)
Adaugă la oferte
Categorie: Etichetă: Brand:

Descriere

  1. Calculated at minimum object distance.
  2. Working distance: distance between the front end of the mechanics and the object.
  3. Value calculated at the corner point of the sensor diagonal. For distortion graphs see datasheet
  4. Measured from the front end of the mechanics to the camera flange at infinity focus.

Informații suplimentare

Lens mount

C
F/n

2.0 – 22
Optmag

0.132 (x)
Accessory developer

Opto
Zoom ratio

0.132 (x)
Magnification

0.132 (x)
Max sensor size

4/3″
Distortion on 4 3

2.81 (%)
Mass

338 (g)
1

94.24 x 74.47
Image circle diameter

23.0 (mm)
Length

85.9 (mm)
Operating temperature

-10-+50 (°C)
Focal length

16 (mm)
Working distance range

0.1 – inf (m)
Back focal length

21.00 (mm)
Distortion on 2 3

1.06 (%)
Iris control

Manual
Focus control

Manual
Filter thread

M58 x 0.75
Outer diameter

60.0 (mm)
Set screw thread

M2
Distortion on 1

1.92 (%)
Mount

C
Focal length (mm)

16 (mm)
Sensor size
