Descriere
- Color-model’s fps are calculated using RGB8 pixel format
- Measured at 5 VDC (USB3.0 power supply)

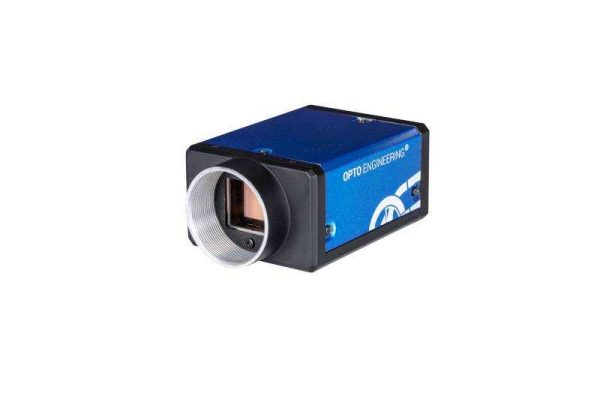

COE-089-C-USB-070-IR-C
| Specification | Value |
|---|---|
| Megapixel | 8.8 |
| Resolution | 4096 x 2160 |
| Sensor format | 1″ |
| Active area | 16.0 (mm) |
| Pixel size | 3.45 (μm) |
| Sensor model | IMX267 |
| Sensor type | CMOS |
| Shutter | Global |
| Chroma | Color |
| Filter | IR cut |
| Frame rate | 10.7 (fps) |
| Exposure time | 1 μs – 10 s |
| ADC resolution | (bit) |
| Dynamic range | 72.8 (dB) |
| Gain range | 0-20 (dB) |
| SNR | 40.0 (dB) |
| Image buffer | 128 (MB) |
| Pixel formats | Mono 8/10/12, RGB8, BGR8, Bayer RG 8/10/10Packed/12/12Packed, YUV 422 Packed, YUV422_YUYV_Packed |
| Chunk data | yes |
| User sets | 3 |
| Timers/Counters | 0/1 |
| Synchronization | Free run, software trigger, hardware trigger |
| Data connector | USB 3.0 Micro-B |
| Data interface | USB 3.0 |
| I/O connector | 6-pin Hirose |
| I/O interface | 1x opto-isolated input, 1x opto-isolated output, 1x bi-directional non-isolated |
| Serial interface | no |
| Encoder interface | no |
| Power supply | 5-15, USB 3.0 (V) |
| Max power consumption | 3.3 (W) |
| Standards | USB3 Vision, GenICam |
| Client software | OECS or other USB3 Vision software |
| Operating systems | 32/64-bit Windows XP/7/10 |
| Warranty | 1 (years) |
| Mount | C |
| Dimensions | 44 x 29 x 68 (mm) |
| Clamping system | 4x M3 threaded holes (on one side) |
| Mass | 100.0 (g) |
| Operating temperature | 0-50 (°C ) |
| Storage temperature | -30-+70 (°C ) |
| Operating relative humidity | 20-80, non condensing (%) |
| IP rating | IP30 |
Informații suplimentare
| Frame rate | 10.7 (fps) |
|---|---|
| Adc resolution | (bit) |
| Operating relative humidity | 20-80, non condensing (%) |
| Clamping system | 4x M3 threaded holes (on one side) |
| Dynamic range | 72.8 (dB) |
| Serial interface | no |
| Pixel size | 3.45 (μm) |
| Megapixel | 8.8 |
| Filter | IR cut |
| Sensor type | CMOS |
| Shutter | Global |
| Operating temperature | 0-50 (°C ) |
| Resolution | 4096 x 2160 |
| Active area | 16.0 (mm) |
| Chroma | Color |
| Data connector | USB 3.0 Micro-B |
| Interface | USB 3.0 |
| Lens mount | C |
| Mono-color | Color |
| Storage temperature | -30-+70 (°C ) |
| Ip rating | IP30 |
| Max power consumption | 3.3 (W) |
| Exposure time | 1 μs – 10 s |
| Client software | OECS or other USB3 Vision software |
| Sensor format | 1" |
| Timers counters | 0/1 |
| Synchronization | Free run, software trigger, hardware trigger |
| Data interface | USB 3.0 |
| I/o interface | 1x opto-isolated input, 1x opto-isolated output, 1x bi-directional non-isolated |
| Gain range | 0-20 (dB) |
| I/o connector | 6-pin Hirose |
| Power supply | 5-15, USB 3.0 (V) |
| Mass | 100.0 (g) |
| Snr | 40.0 (dB) |
| Operating systems | 32/64-bit Windows XP/7/10 |
| Standards | USB3 Vision, GenICam |
| Warranty | 1 (years) |
| Dimensions | 44 x 29 x 68 (mm) |
| Image buffer | 128 (MB) |
| Pixel formats | Mono 8/10/12, RGB8, BGR8, Bayer RG 8/10/10Packed/12/12Packed, YUV 422 Packed, YUV422_YUYV_Packed |
| Mount | C |
| Sensor model | IMX267 |
| Encoder interface | no |
| Chunk data | yes |
| User sets | 3 |
| Accessory developer | Opto |
