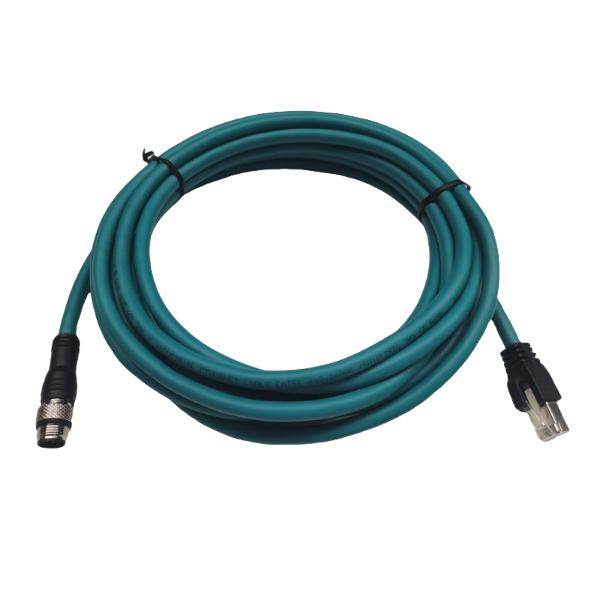

CABNET-M12A8-RJ45-15D

Model	CABNET-M12A8-RJ45-15D
Category	Gigabit Ethernet cable (M12 to RJ45)
Appearance Color	Green
Length	15m
End A Connector	M12 8pin A-code Male
End B Connector	RJ45
Cable Structure	24AWG*4P+AEB
Cable Diameter	7.2mm
Cable Sheath	PVC
Connector Durability	?750 cycles
Min Bending Radius	70mm
Applicable Scenes	Dynamic scene
Number of Cycles Rubber Tracks Complete	10 million cycles
Packaging Method	Individual package bag
Max Operating Voltage	30 VDC
Certifications	RoHS2.0
Operating Temperature	-20??80?

Descriere

1?High-speed Gigabit Ethernet, stable transmission
2?M12 Aviation head connector, reliable connection camera
3?With shielding layer design, to ensure anti-external electromagnetic interference
4?With excellent flexibility, to meet the tank chain mobile installation applications
5?Specific good wear resistance, cold resistance, flame retardant
6?Conform to RoHS 2.0

Appearance color	Green
Applicable scenes	Dynamic scene
Cable diameter	7.2mm
Cable sheath	PVC
Cable structure	24AWG*4P+AEB
Certifications	RoHS2.0
Connector durability	≥750 cycles
End a connector	M12 8pin A-code Male
End b connector	RJ45
Length	15m
Max operating voltage	30 VDC
Min bending radius	70mm
Packaging method	Individual package bag
Product category	Gigabit Ethernet cable (M12 to RJ45)
