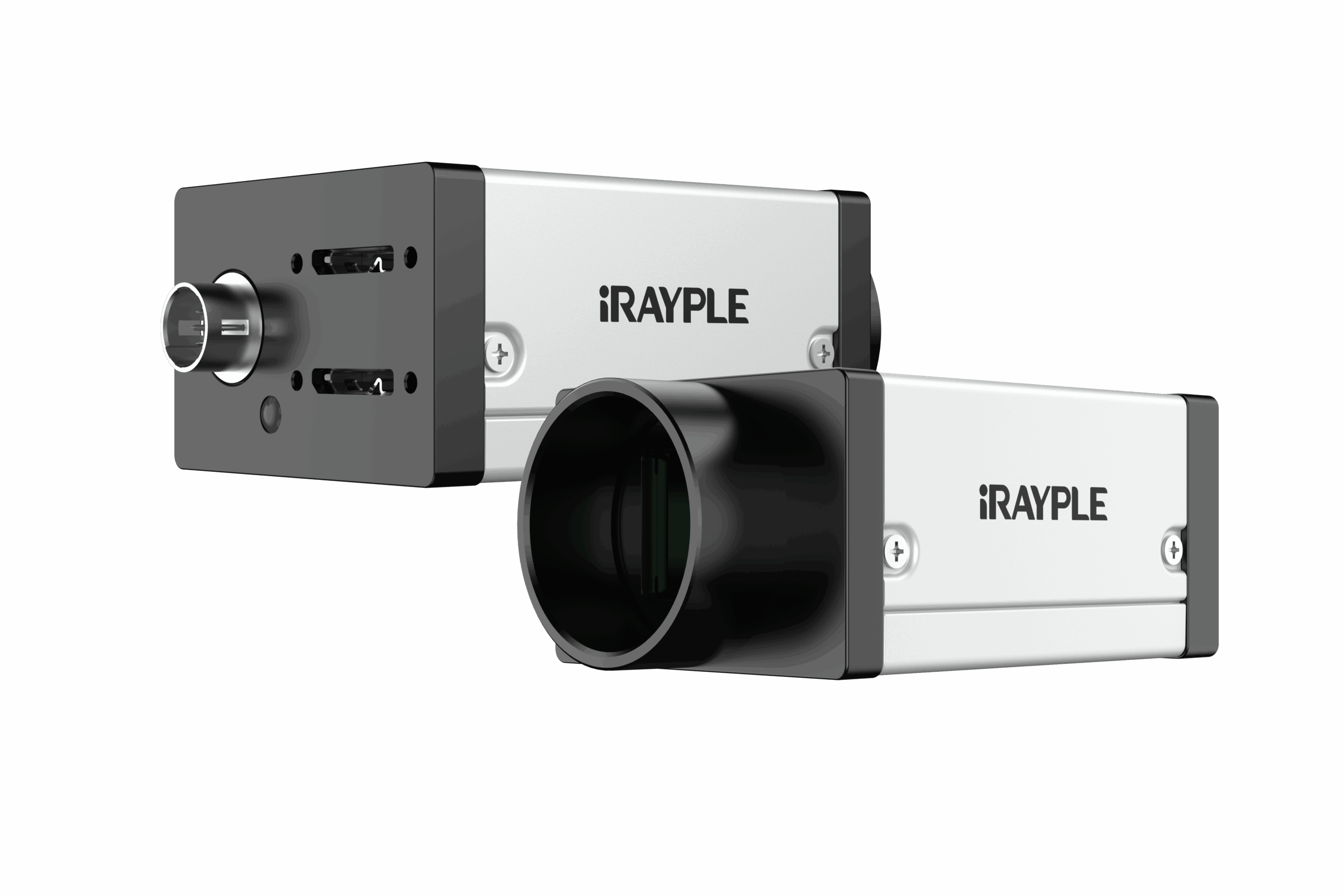

AH5B57MV200E

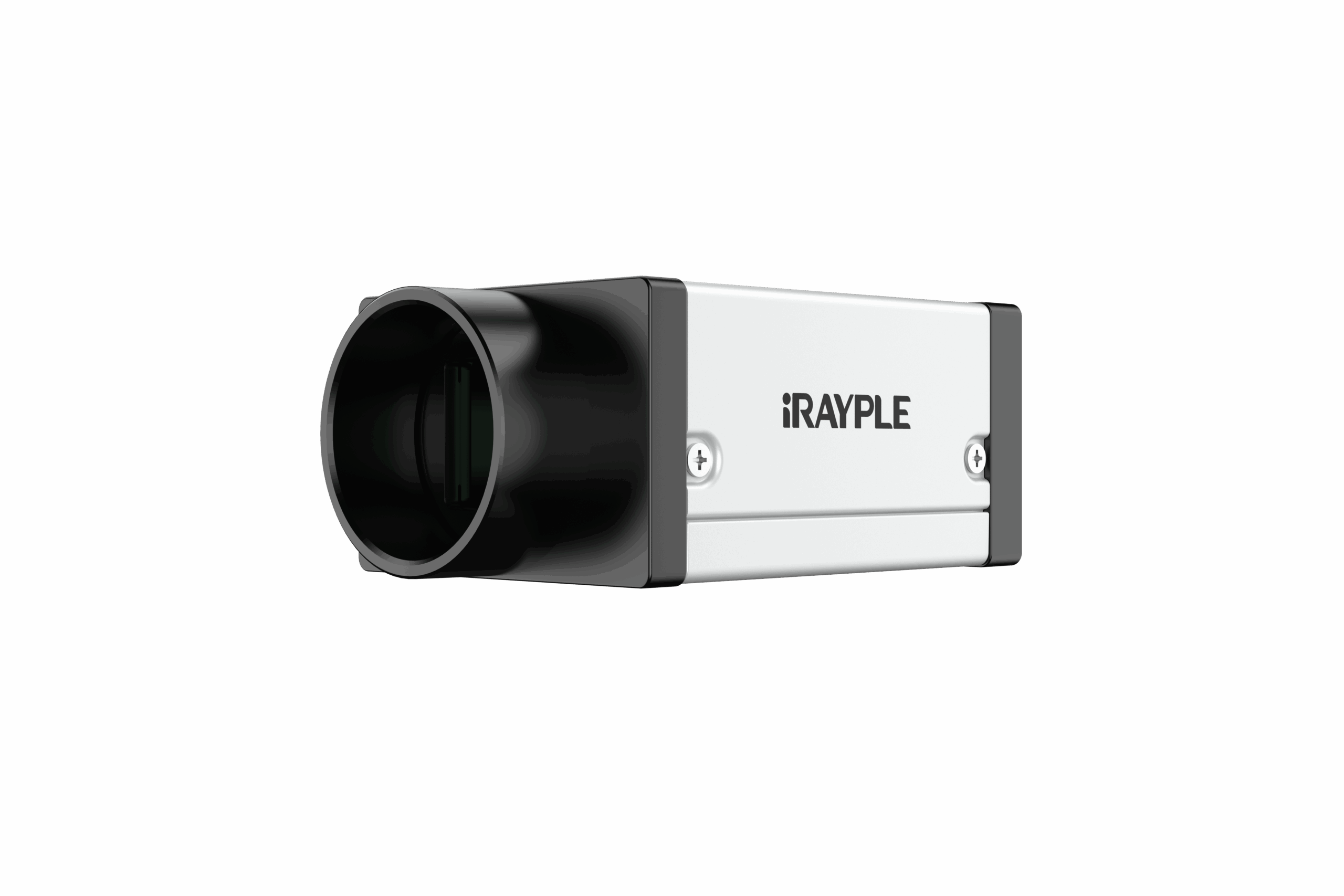

AH5B57MV200E - imagine 2
AH5B57MV200E - imagine 3
AH5B57MV200E - imagine 4

AH5B57MV200E

Sensor Gpixel
Image Sensor 1.1″CMOS
Shutter Global
Resolution 5120 x 5120
Frame Rate 30fps
Bit Depth 12
Mono/Color Mono
Pixel Size 2.5 ?m x 2.5 ?m
Pixel 25MP
S/N Ratio >35dB
Dynamic Range >64dB
Image Format Mono8/10/10Packed/12/12Packed
Binning Support
ROI Support
X Flip Support
Y Flip Support
Gain 1~32
Gamma Range from 0 to 4, support LUT
Exposure Time 5?S~1S
Trigger Mode Software Trigger/Hardware Trigger/Free Run Mode
SPC Support
user Setting Support two sets of user-defined configurations
Image Buffer 512M data cache
Port usB 3.0
GPIO Interface 6 pin Hirose: 1 Opto-isolated input, 1 Opto-isolated output, 1 configurable input/output without opto isolation
Lens Mount C
Power Supply Power supply via usB connector /DC power supply by Hirose connector, with voltage range from 9V to 24V
Power Consumption ?4.85W (dual usB 3.0 interfaces provide power supply)
Product Dimensions 29mmx44mmx58mm (not including rear case connector)
Net Weight 139g
Storage Temperature -30°C~+80°C
Operating Temperature -30°C~+50°C
Adaugă la oferte
Categorie: Etichetă: Brand:

Descriere

  • usB3.0 interface, 10Gbps theoretical transfer bandwidth, power supply via usB interface?
  • Compact size of 29mm*44mm*58mm
  • 256MB on-board cache for data transmission or image resend
  • Support Software Trigger/Hardware Trigger/Free Run Mode
  • Support ISP functions including Sharpness/Denoising/Gamma/LUT/BlackLevel Correction/TargetBrightness/Contrast etc.
  • Support multiple image data formats output/ ROI/Binning/Mirror, etc.?
  • Compatible with usB3.0 Vision protocol and GenICam standard
  • Comform to CE, FCC, RoHS

Dimensions

Downloads

usB_3.0_Area_Scan_Camera_user_s_Manual_V1.0.0.pdf

Informații suplimentare

Binning

Support
Bit depth

12
Dynamic range

>64dB
Exposure time

5us~1S
Frame rate

30fps
Gain

1~32
Gamma

Range from 0 to 4, support LUT
Gpio interface

6 pin Hirose: 1 Opto-isolated input, 1 Opto-isolated output, 1 configurable input/output without opto isolation
Image buffer

512M data cache
Image format

Mono8/10/10Packed/12/12Packed
Image sensor

1.1"CMOS
Lens mount

C
Pixel

25MP
Pixel size

2.5 um x 2.5 um
Port

usB 3.0
Power consumption

≈4.85W (dual usB 3.0 interfaces provide power supply)
Power supply

Power supply via usB connector /DC power supply by Hirose connector, with voltage range from 9V to 24V
Resolution

5120 x 5120
Roi

Support
Sensor

Gpixel
Shutter

Global
Spc

Support
Storage temperature

-30℃~+80℃
Trigger mode

Software Trigger/Hardware Trigger/Free Run Mode
User setting

Support two sets of user-defined configurations
X flip

Support
Y flip

Support
Mono-color

Mono
S/n ratio

>35dB
