AH5B57CG200E

Sensor	GMAX0505
Image Sensor	1.1″CMOS
Shutter	Global
Resolution	5120 x 5120
Frame Rate	4.5 fps?7 fps @Compression Mode Burst)
Bit Depth	12
Mono/Color	Color
Pixel Size	2.5 ?m x 2.5 ?m
Pixel	25.0 MP
S/N Ratio	36 dB
Dynamic Range	63 dB
Image Format	Mono 8/10/12, Bayer RG 8/10/10Packed/12/12Packed,YUV422_8_UYVY,YUV422_8,RGB8,BGR8
Binning	off/onebytwo/twobyone/twobytwo/onebyfour/fourbyone/twobyfour/fourbytwo/fourbyfour/ThreebyThree/onebySix/SixbyOne/SixbySix
ROI	Support
X Flip	Support
Y Flip	Support
Gain	1?32X
Gamma	From 0 to 3.99998, support LUT
Exposure Time	NE: 5?s~10sec
Trigger Mode	Software Trigger/Hardware Trigger/Free Run Mode
SPC	Support
user Setting	Support three sets of user-defined configurations
Image Buffer	256MB
Port	GigE, PoE

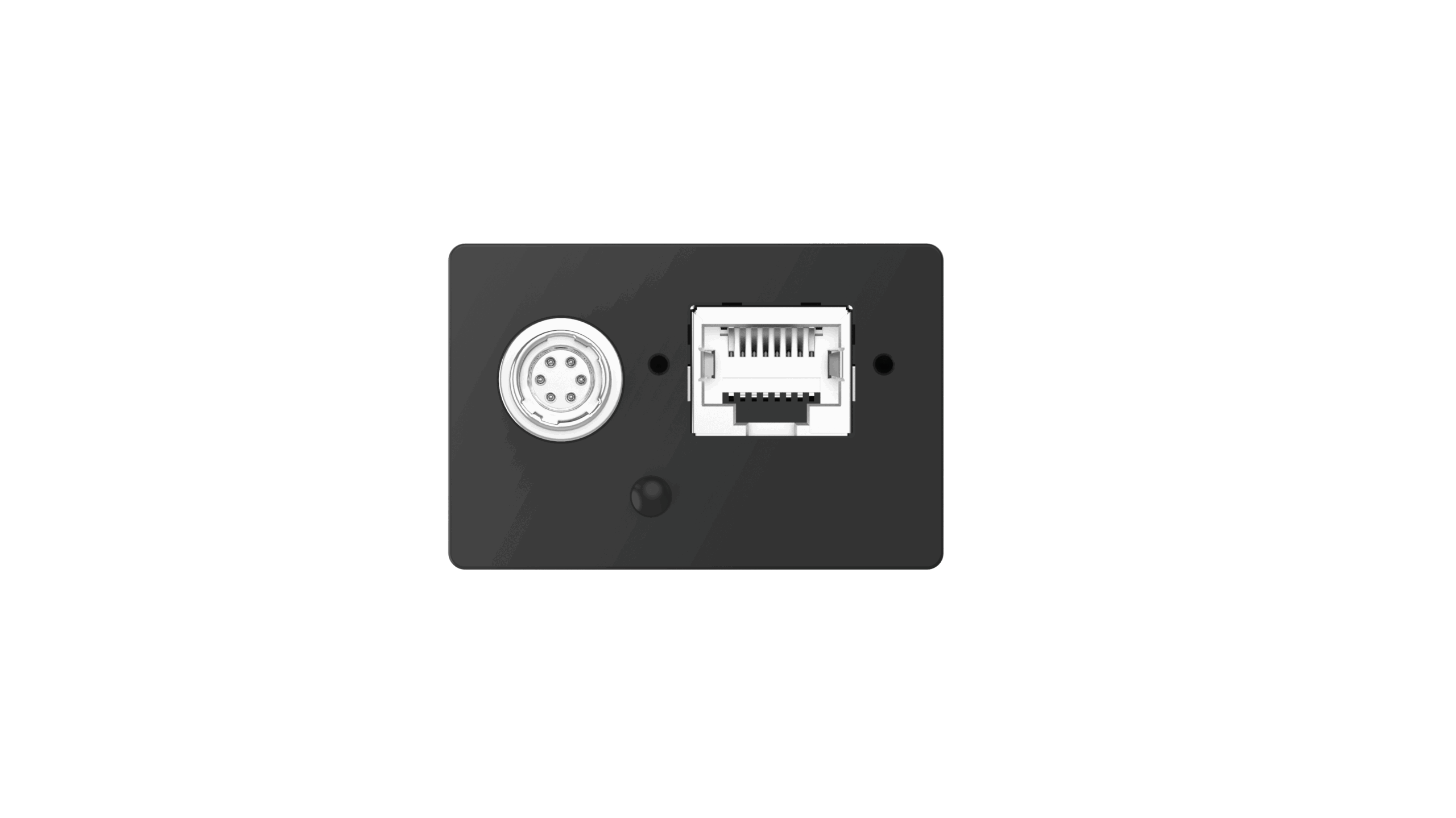

GPIO Interface	1x 6 pin Hirose: 1x Opto-isolated input, 1x Opto-isolated output, 1 configurable input and output
Lens Mount	C-mount
Power Supply	PoE/ DC 9V~24V power supply via Hirose interface
Power Consumption	12 VDC?3.10W(Typ. )
Product Dimensions	29mmx44mmx58mm (not including lens mount and rear case connector)
Net Weight	140 g
Storage Temperature	-30??+80?
Operating Temperature	0??+50?

Descriere

Gigabit Ethernet interface, providing 1Gbps bandwidth with a maximum transmission distance of 100m
256MB on-board cache for data transmission or image resend
Support Software Trigger/Hardware Trigger/Free Run Mode
Support ISP functions including Gamma/LUT/BlackLevel Correction/TargetBrightness/Contrast,FFC,Denoising Sharpness,BalanceWhite,CCM,ColorAdjustment,Multi-color temperature adjustment, multi-function interpolation adjustment etc.
Support multiple image data formats output/ROI/Binning(Including Pixel arbitrary scaling)/Mirror/ AutoFunction/Compress/Sequencer etc.
Conform to GigE Vision V2.0 protocol and GenICam standard
Conform to CE/UKCA/UL/KC,RoHS

Binning	off/onebytwo/twobyone/twobytwo/onebyfour/fourbyone/twobyfour/fourbytwo/fourbyfour/ThreebyThree/onebySix/SixbyOne/SixbySix
Bit depth	12
Dynamic range	63 dB
Exposure time	NE: 5us~10sec
Frame rate	4.5 fps（7 fps @Compression Mode Burst)
Gain	1~32X
Gamma	From 0 to 3.99998, support LUT
Gpio interface	1x 6 pin Hirose: 1x Opto-isolated input, 1x Opto-isolated output, 1 configurable input and output
Image buffer	256MB
Image format	Mono 8/10/12, Bayer RG 8/10/10Packed/12/12Packed,YUV422_8_UYVY,YUV422_8,RGB8,BGR8
Image sensor	1.1"CMOS
Lens mount	C-mount
Pixel	25.0 MP
Pixel size	2.5 um x 2.5 um
Port	GigE, PoE
Power consumption	12 VDC≈3.10W(Typ. )
Power supply	PoE/ DC 9V~24V power supply via Hirose interface
Resolution	5120 x 5120
Roi	Support
Sensor	GMAX0505
Shutter	Global
Spc	Support
Storage temperature	-30℃~+80℃
Trigger mode	Software Trigger/Hardware Trigger/Free Run Mode
User setting	Support three sets of user-defined configurations
X flip	Support
Y flip	Support
Mono-color	Color
S/n ratio	36 dB
