Descriere
- GigE interface up to max. 100m transmission
- 256MB on-board frame buffer
- Support multiple image data formats
- Software trigger/Hardware trigger/Free run mode
- Compatible with GigE Vision V2.0 protocol and GenICam standard
Dimensions

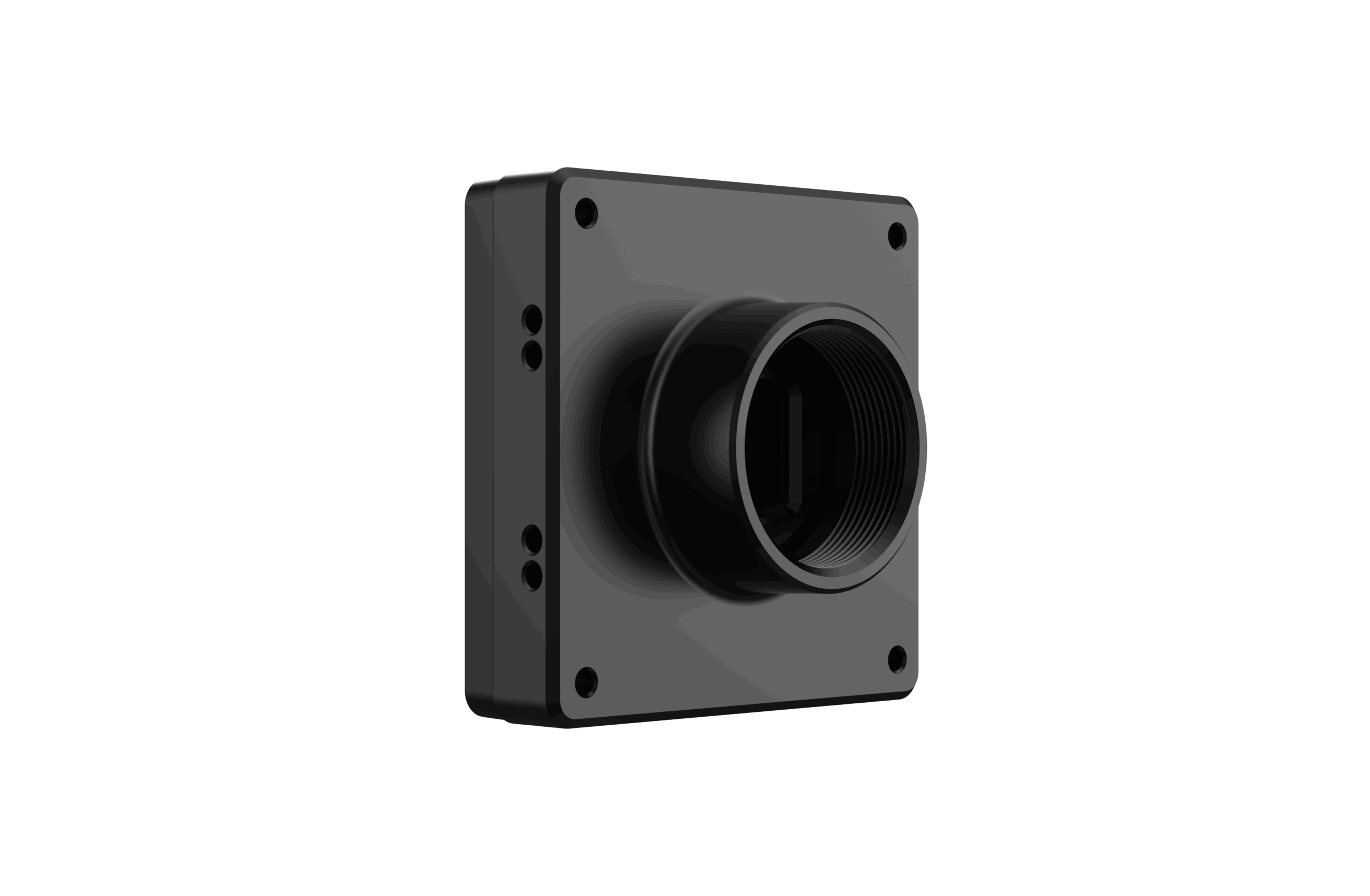

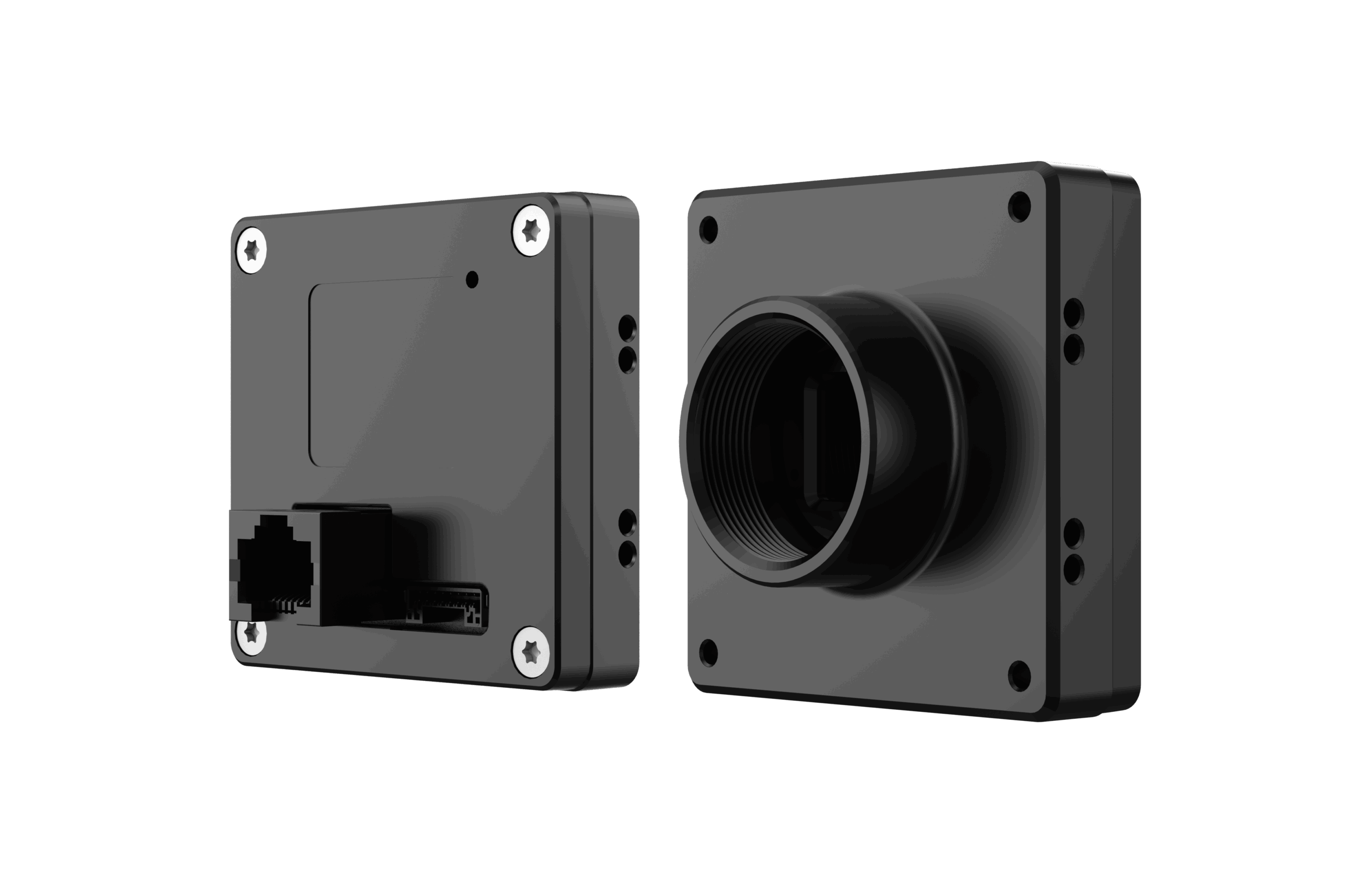

AB3600MG000E
| Sensor | IMX178 |
| Image Sensor | 1/1.8″CMOS |
| Shutter | Rolling |
| Resolution | 3072 x 2048 |
| Frame Rate | 18 fps |
| Bit Depth | 10 |
| Mono/Color | Mono |
| Pixel Size | 2.4 ?m x 2.4 ?m |
| Pixel | 6 MP |
| S/N Ratio | ?38 dB |
| Dynamic Range | 60 dB |
| Image Format | Mono8/10/10Packed/12/12Packed |
| Binning | Support |
| ROI | Support |
| X Flip | Support |
| Y Flip | Support |
| Gain | 1~32 |
| Gamma | From 0 to 4?support LUT |
| Exposure Time | 25? s~1 s |
| Trigger Mode | Software Trigger/Hardware Trigger/Free Run Mode |
| SPC | Support |
| user Setting | Support two sets of user-defined configurations |
| Image Buffer | 256 MB |
| Port | GigE |
| GPIO Interface | 1 x Opto-isolated input, 1 x Opto-isolated output, 1 configurable input and output |
| Lens Mount | C-mount |
| Power Supply | DC power supply by 8 pin Socket connector, with voltage range from 9V to 24V |
| Power Consumption | 12V?3.4W |
| Product Dimensions | 55 mm x 55 mm x 14 mm(not including lens mount and rear case connector) |
| Net Weight | 60 g |
| Storage Temperature | -30?~+80? |
| Operating Temperature | 0?~+50? |
Informații suplimentare
| Binning | Support |
|---|---|
| Bit depth | 10 |
| Dynamic range | 60 dB |
| Exposure time | 25u s~1 s |
| Frame rate | 18 fps |
| Gain | 1~32 |
| Gamma | From 0 to 4，support LUT |
| Gpio interface | 1 x Opto-isolated input, 1 x Opto-isolated output, 1 configurable input and output |
| Image buffer | 256 MB |
| Image format | Mono8/10/10Packed/12/12Packed |
| Image sensor | 1/1.8"CMOS |
| Lens mount | C-mount |
| Pixel | 6 MP |
| Pixel size | 2.4 um x 2.4 um |
| Port | GigE |
| Power consumption | 12V≈3.4W |
| Power supply | DC power supply by 8 pin Socket connector, with voltage range from 9V to 24V |
| Resolution | 3072 x 2048 |
| Roi | Support |
| Sensor | IMX178 |
| Shutter | Rolling |
| Spc | Support |
| Storage temperature | -30℃~+80℃ |
| Trigger mode | Software Trigger/Hardware Trigger/Free Run Mode |
| User setting | Support two sets of user-defined configurations |
| X flip | Support |
| Y flip | Support |
| Mono-color | Mono |
| S/n ratio | >38 dB |
