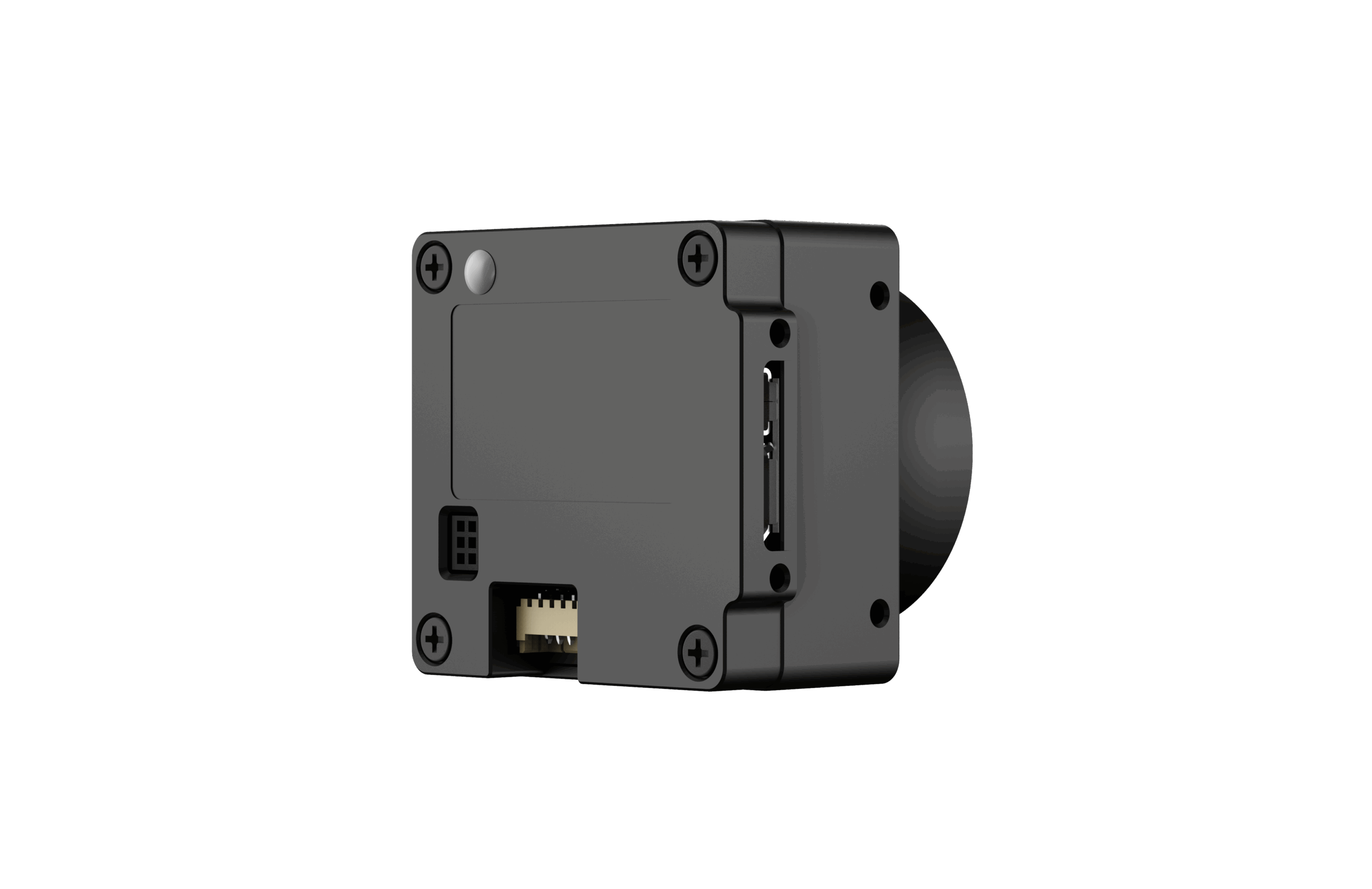

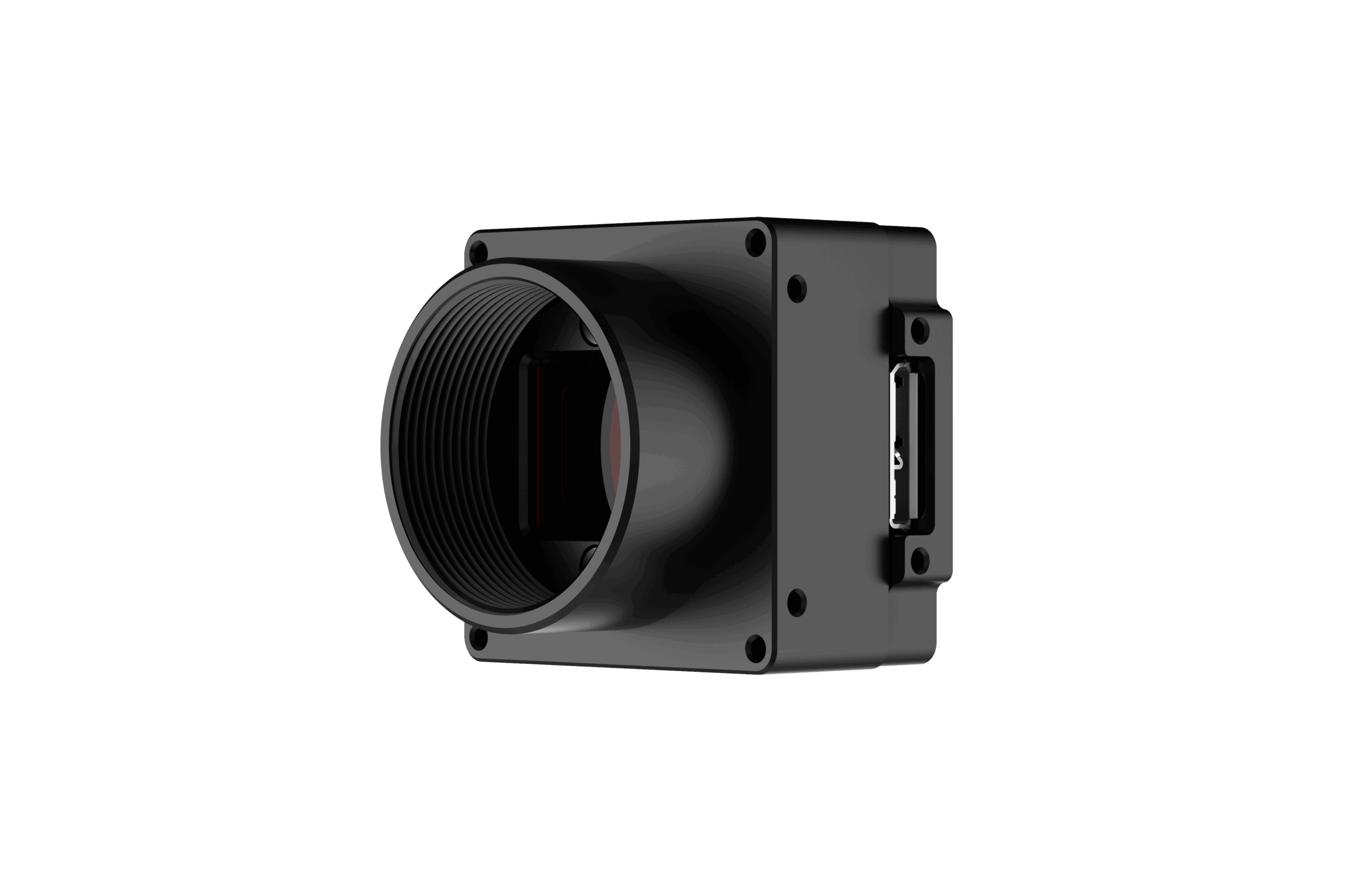

AB3138CU000E

Sensor	SS
Image Sensor	1/2.7″CMOS
Shutter	Global
Resolution	1280 x 1024
Frame Rate	201 fps
Bit Depth	10
Mono/Color	Color
Pixel Size	4.0 ?m x 4.0 ?m
Pixel	1.3 MP
S/N Ratio	40 dB
Dynamic Range	60 dB
Image Format	BayerRG8/BayerGB8/BayerRG10/BayerGB10/BayerRG10Packed/BayerGB10Packed
ROI	Support
X Flip	Support
Y Flip	Support
Gain	1~32
White Balance	Support
Gamma	Range from 0 to 4, support LUT
Exposure Time	10 ?s~1 s
Trigger Mode	Software Trigger/Hardware Trigger/Free Run Mode
SPC	Support
user Setting	Support two sets of user-defined configurations
Image Buffer	64 MB
Port	usB 3.0
GPIO Interface	Standard 5 pin trigger connecter: 1x Opto-isolated input, 1x Opto-isolated output, 1 configurable input and output
Lens Mount	C-mount
Power Supply	Power supply via usB connector
Power Consumption	?2.8 W
Product Dimensions	35 mm x 35 mm x 19 mm
Net Weight	68 g
Storage Temperature	-30?~+80?
Operating Temperature	-30?~+50?

Descriere

usB3.0 interface, 5Gbps theoretical transfer bandwidth,
Compact design of 35mm*35mm*19mm
128MB on-board cache for data transmission or image resend
Support Software Trigger/Hardware Trigger/Free Run Mode
Support ISP functions including Sharpness/Denoising/Gamma/LUT/BlackLevel Correction/TargetBrightness/Contrast etc.
Color cameras support interpolation, white balance, color conversion matrix, chroma, saturation, etc.
Support multiple image data formats output/ROI/Mirror, etc.
Conform to usB3.0 Vision protocol and GenICam standard
Conform to CE, FCC, RoHS

Bit depth	10
Dynamic range	60 dB
Exposure time	10 us~1 s
Frame rate	201 fps
Gain	1~32
Gamma	Range from 0 to 4, support LUT
Gpio interface	Standard 5 pin trigger connecter: 1x Opto-isolated input, 1x Opto-isolated output, 1 configurable input and output
Image buffer	64 MB
Image format	BayerRG8/BayerGB8/BayerRG10/BayerGB10/BayerRG10Packed/BayerGB10Packed
Image sensor	1/2.7"CMOS
Lens mount	C-mount
Pixel	1.3 MP
Pixel size	4.0 um x 4.0 um
Port	usB 3.0
Power consumption	≈2.8 W
Power supply	Power supply via usB connector
Resolution	1280 x 1024
Roi	Support
Sensor	SS
Shutter	Global
Spc	Support
Storage temperature	-30℃~+80℃
Trigger mode	Software Trigger/Hardware Trigger/Free Run Mode
User setting	Support two sets of user-defined configurations
White balance	Support
X flip	Support
Y flip	Support
Mono-color	Color
S/n ratio	40 dB
